麦迪康32.768K晶振,WC26SMFD-32.768KHz-T,数字显示晶振
频率：32.768KHz
尺寸：2.0x6.0mm
麦迪康32.768K晶振,WC26SMFD-32.768KHz-T,数字显示晶振，美国进口晶振，Mmdcomp麦迪康晶振，型号：WC26SM，编码为：WC26SMFD-32.768KHz-T，频率为：32.768KHz，小体积晶振尺寸为：2.0x6.0mm，表面安装时钟晶体，无源晶振，石英晶体，弯脚插件晶振，石英晶振，石英晶体谐振器，无铅环保晶振，具有小型紧凑型，高精度，高性能，耐热及耐环境特点。符合RoHS。应用于：通讯设备晶振，时钟晶振，无线网络，蓝牙模块，仪器仪表设备，电脑主板，智能门锁，数字显示设备，数码电子等应用。

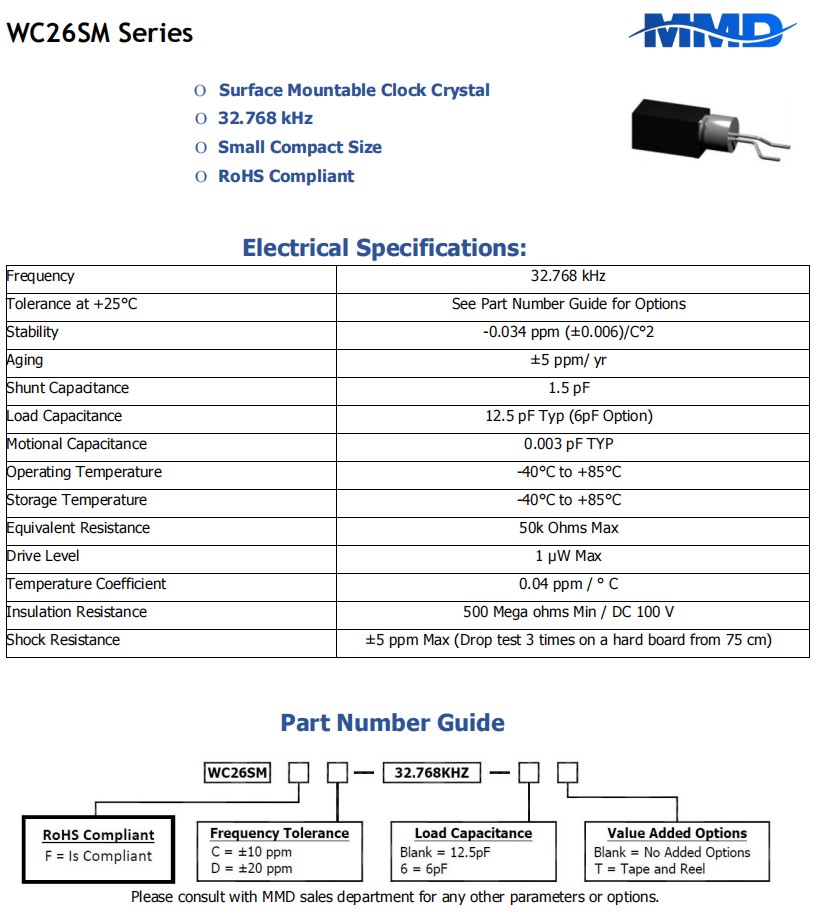

麦迪康32.768K晶振,WC26SMFD-32.768KHz-T,数字显示晶振,参数表
Frequency
32.768 kHz
Tolerance at +25°C
See Part Number Guide for Options
Stability
-0.034 ppm (±0.006)/C°2
Aging
±5 ppm/ yr
Shunt Capacitance
1.5 pF
Load Capacitance
12.5 pF Typ (6pF Option)
Motional Capacitance
0.003 pF TYP
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +85°C
Equivalent Resistance
50k Ohms Max
Drive Level
1 µW Max
Temperature Coefficient
0.04 ppm / ° C
Insulation Resistance
500 Mega ohms Min / DC 100 V
Shock Resistance
±5 ppm Max (Drop test 3 times on a hard board from 75 cm)

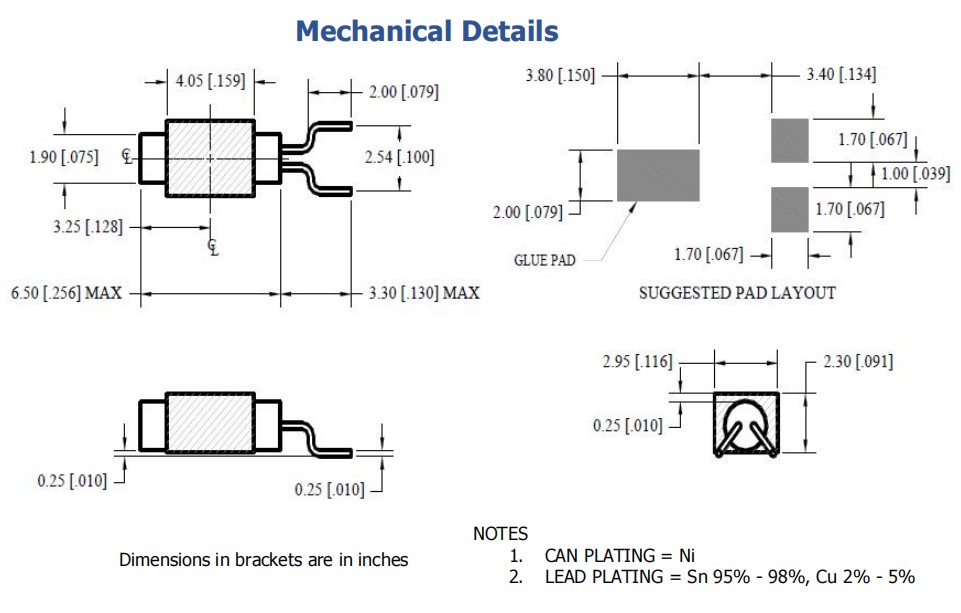

麦迪康32.768K晶振,WC26SMFD-32.768KHz-T,数字显示晶振,尺寸图
麦迪康32.768K晶振,WC26SMFD-32.768KHz-T,数字显示晶振
32.768K系列产品本身具有体积小,厚度薄,重量轻等特点,此音叉型石英晶体谐振器,晶振产品本身具备优良的耐热性,耐环境特性,在办公自动化,家电领域,移动通信领域可发挥优良的电气特性,符合无铅标准,满足无铅焊接的回流温度曲线要求,金属外壳的石英晶振使得产品在封装时能发挥比陶瓷晶振外壳更好的耐冲击性能.
| 产品编码 | 进口晶振 | 描述 | Frequency | 系列 | 负载电容 |
| WC146SMF-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC146SM | 12.5pF |
| DF18CC1-4.000MHZ-T | Mmdcomp晶振 | CRYSTAL 4.0000MHZ 18PF SMD | 4 MHz | D | 18pF |
| DF18CC1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 18PF SMD | 16.384 MHz | D | 18pF |
| MMC-463F-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | MMC | 12.5pF |
| WC315-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC315 | 12.5pF |
| DF18CC1-9.8304MHZ-T | Mmdcomp晶振 | CRYSTAL 9.8304MHZ 18PF SMD | 9.8304 MHz | D | 18pF |
| DF18CC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz | D | 18pF |
| DF18CC1-10.000MHZ-T | Mmdcomp晶振 | CRYSTAL 10.0000MHZ 18PF SMD | 10 MHz | D | 18pF |
| DF18CC1-10.240MHZ-T | Mmdcomp晶振 | CRYSTAL 10.2400MHZ 18PF SMD | 10.24 MHz | D | 18pF |
| DF18CC1-3.6864MHZ-T | Mmdcomp晶振 | CRYSTAL 3.6864MHZ 18PF SMD | 3.6864 MHz | D | 18pF |
| DF18CC1-4.500MHZ-T | Mmdcomp晶振 | CRYSTAL 4.5000MHZ 18PF SMD | 4.5 MHz | D | 18pF |
| DF18CC1-15.000MHZ-T | Mmdcomp晶振 | CRYSTAL 15.0000MHZ 18PF SMD | 15 MHz | D | 18pF |
| DF18CC1-3.579545MHZ-T | Mmdcomp晶振 | CRYSTAL 3.579545MHZ 18PF SMD | 3.579545 MHz | D | 18pF |
| DF18CC1-13.000MHZ-T | Mmdcomp晶振 | CRYSTAL 13.0000MHZ 18PF SMD | 13 MHz | D | 18pF |
| DF18CC1-14.31818MHZ-T | Mmdcomp晶振 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz | D | 18pF |
| T10GC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | T | 10pF |
| X10CB1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | X | 10pF |
| X10CB1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz | X | 10pF |
| X10CB1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | X | 10pF |
| X10CB1-22.1184MHZ-T | Mmdcomp晶振 | CRYSTAL 22.1184MHZ 10PF SMD | 22.1184 MHz | X | 10pF |
| X10CB1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 10PF SMD | 27 MHz | X | 10pF |
| X10CB1-32.000MHZ-T | Mmdcomp晶振 | CRYSTAL 32.0000MHZ 10PF SMD | 32 MHz | X | 10pF |
| X10CB1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | X | 10pF |
| DF18CC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | D | 18pF |
| DF18CC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz | D | 18pF |
| DF18CC1-4.433619MHZ-T | Mmdcomp晶振 | CRYSTAL 4.433619MHZ 18PF SMD | 4.433619 MHz | D | 18pF |
| DF18CC1-19.6608MHZ-T | Mmdcomp晶振 | CRYSTAL 19.6608MHZ 18PF SMD | 19.6608 MHz | D | 18pF |
| DF18CC1-14.7456MHZ-T | Mmdcomp晶振 | CRYSTAL 14.7456MHZ 18PF SMD | 14.7456 MHz | D | 18pF |
| DF18CC1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 18PF SMD | 30 MHz | D | 18pF |
| DF18CC1-16.9344MHZ-T | Mmdcomp晶振 | CRYSTAL 16.9344MHZ 18PF SMD | 16.9344 MHz | D | 18pF |
| DF18CC1-6.144MHZ-T | Mmdcomp晶振 | CRYSTAL 6.1440MHZ 18PF SMD | 6.144 MHz | D | 18pF |
| DF18CC1-7.3728MHZ-T | Mmdcomp晶振 | CRYSTAL 7.3728MHZ 18PF SMD | 7.3728 MHz | D | 18pF |
| DF18CC1-4.194304MHZ-T | Mmdcomp晶振 | CRYSTAL 4.194304MHZ 18PF SMD | 4.194304 MHz | D | 18pF |
| DF18CC1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 18PF SMD | 18.432 MHz | D | 18pF |
| DF18CC1-15.360MHZ-T | Mmdcomp晶振 | CRYSTAL 15.3600MHZ 18PF SMD | 15.36 MHz | D | 18pF |
| DF18CC1-6.7458MHZ-T | Mmdcomp晶振 | CRYSTAL 6.7458MHZ 18PF SMD | 6.7458 MHz | D | 18pF |
| DF18CC1-18.000MHZ-T | Mmdcomp晶振 | CRYSTAL 18.0000MHZ 18PF SMD | 18 MHz | D | 18pF |
| DF18CC1-12.000MHZ-T | Mmdcomp晶振 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | D | 18pF |
| DF18CC1-4.9152MHZ-T | Mmdcomp晶振 | CRYSTAL 4.9152MHZ 18PF SMD | 4.9152 MHz | D | 18pF |
| DF18CC1-28.63636MHZ-T | Mmdcomp晶振 | CRYSTAL 28.63636MHZ 18PF SMD | 28.63636 MHz | D | 18pF |
| DF18CC1-6.000MHZ-T | Mmdcomp晶振 | CRYSTAL 6.0000MHZ 18PF SMD | 6 MHz | D | 18pF |
| DF18CC1-5.000MHZ-T | Mmdcomp晶振 | CRYSTAL 5.0000MHZ 18PF SMD | 5 MHz | D | 18pF |
| DF18CC1-13.500MHZ-T | Mmdcomp晶振 | CRYSTAL 13.5000MHZ 18PF SMD | 13.5 MHz | D | 18pF |
| DF18CC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz | D | 18pF |
| DF18CC1-11.0592MHZ-T | Mmdcomp晶振 | CRYSTAL 11.0592MHZ 18PF SMD | 11.0592 MHz | D | 18pF |
| DF18CC1-9.216MHZ-T | Mmdcomp晶振 | CRYSTAL 9.2160MHZ 18PF SMD | 9.216 MHz | D | 18pF |
| DF18CC1-12.288MHZ-T | Mmdcomp晶振 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz | D | 18pF |
| T10GC1-22.1184MHZ-T | Mmdcomp晶振 | CRYSTAL 22.1184MHZ 10PF SMD | 22.1184 MHz | T | 10pF |
| T10GC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | T | 10pF |
| T10GC1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | T | 10pF |
| T10GC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | T | 10pF |
| T10GC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | T | 10pF |
| T10GC1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 10PF SMD | 16.384 MHz | T | 10pF |
| T10GC1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | T | 10pF |
| X10CB1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | X | 10pF |
| X10CB1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | X | 10pF |
| X10CB1-26.000MHZ-T | Mmdcomp晶振 | CRYSTAL 26.0000MHZ 10PF SMD | 26 MHz | X | 10pF |
| X10CB1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | X | 10pF |
| X10CB1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 10PF SMD | 16.384 MHz | X | 10pF |
| WC26SMFD-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768k | WC26SM | 12.5pF |
| DF18CC1-8.000MHZ-T | Mmdcomp晶振 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz | D | 18pF |
| WC38F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | 32.768 kHz | WC | 12.5pF |
| WC26F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | 32.768 kHz | WC | 12.5pF |
| X10CB1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | X | 10pF |
| X10CB1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | X | 10pF |
| DF18CC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz | D | 18pF |
| T10GC1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 10PF SMD | 18.432 MHz | T | 10pF |
| X10CB1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | X | 10pF |
| T10GC1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | T | 10pF |
| X10CB1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 10PF SMD | 18.432 MHz | X | 10pF |
| T10GC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | T | 10pF |
| T10GC1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 10PF SMD | 27 MHz | T | 10pF |
| T10GC1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | T | 10pF |
| T10GC1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz | T | 10pF |
| DF18CC1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 18PF SMD | 27 MHz | D | 18pF |
