Mmdcomp石英晶体谐振器,T10GC1-48.000MHZ-T,安防设备晶振
频率：48.000MHz
尺寸：3.2x2.5mm
Mmdcomp石英晶体谐振器,T10GC1-48.000MHZ-T,安防设备晶振，美国进口晶振，MMD晶振，Mmdcomp麦迪康晶振，T系列晶振，编码为：T10GC1-48.000MHZ-T，频率为：48.000MHz，四脚贴片晶振，石英晶振，小体积晶振尺寸：3.2x2.5mm石英晶振，无源晶振，SMD石英晶体，石英晶体，石英晶体谐振器，无铅晶振。具有超小型，轻薄型，高精度，高性能，高稳定性特点。应用于：通讯设备，无线网络，蓝牙模块，汽车电子，游戏机设备，高清电视机，安防设备，数码电子，智能家居等应用。

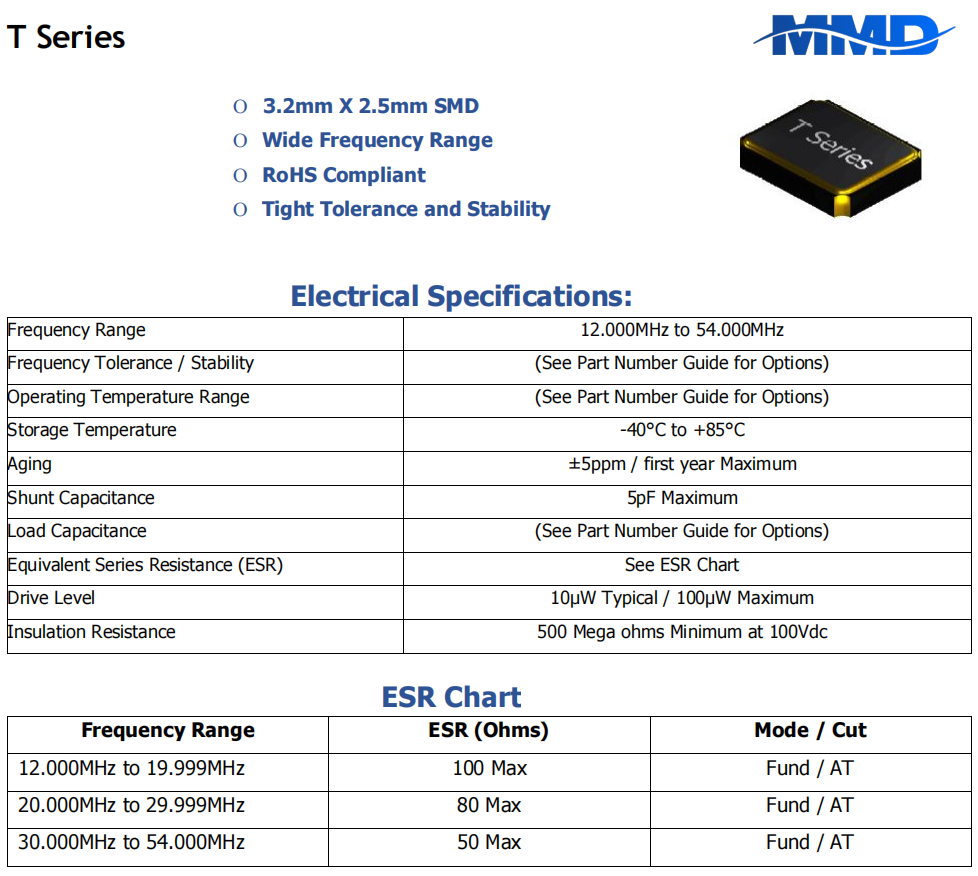

Mmdcomp石英晶体谐振器,T10GC1-48.000MHZ-T,安防设备晶振,参数表
Frequency Range
48.000MHZ
Frequency Tolerance / Stability
(See Part Number Guide for Options)
Operating Temperature Range
(See Part Number Guide for Options)
Storage Temperature
-40°C to +85°C
Aging
±5ppm / per year
Shunt Capacitance
5pF
Load Capacitance
(See Part Number Guide for Options)
Oscillation Mode
Fundamental
Drive Level
10μW typ / 100 max
Insulation Resistance
500 M Ohms / 100 VDC

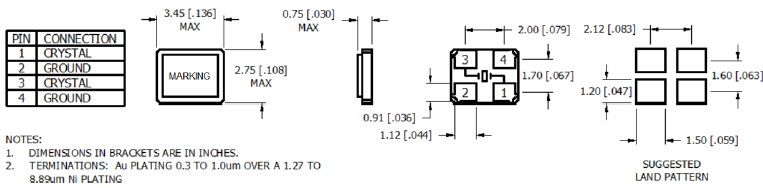

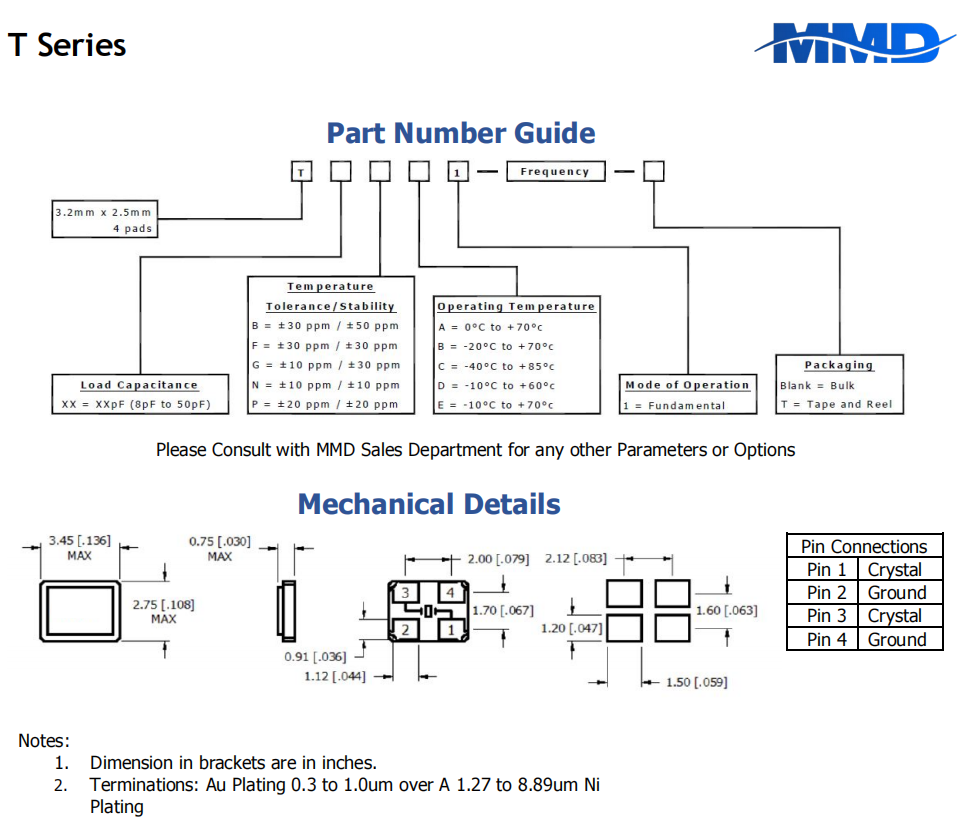

Mmdcomp石英晶体谐振器,T10GC1-48.000MHZ-T,安防设备晶振,尺寸图
Mmdcomp石英晶体谐振器,T10GC1-48.000MHZ-T,安防设备晶振
产品特点：
外形尺寸：3.2x2.5mm 贴片晶振
宽频率范围
RoHS兼容
紧密公差和稳定性
| 晶振编码 | 品牌 | 描述 | Frequency | 系列 | 负载电容 |
| WC146SMF-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC146SM | 12.5pF |
| DF18CC1-4.000MHZ-T | Mmdcomp晶振 | CRYSTAL 4.0000MHZ 18PF SMD | 4 MHz | D | 18pF |
| DF18CC1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 18PF SMD | 16.384 MHz | D | 18pF |
| MMC-463F-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | MMC | 12.5pF |
| WC315-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC315 | 12.5pF |
| DF18CC1-9.8304MHZ-T | Mmdcomp晶振 | CRYSTAL 9.8304MHZ 18PF SMD | 9.8304 MHz | D | 18pF |
| DF18CC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz | D | 18pF |
| DF18CC1-10.000MHZ-T | Mmdcomp晶振 | CRYSTAL 10.0000MHZ 18PF SMD | 10 MHz | D | 18pF |
| DF18CC1-10.240MHZ-T | Mmdcomp晶振 | CRYSTAL 10.2400MHZ 18PF SMD | 10.24 MHz | D | 18pF |
| DF18CC1-3.6864MHZ-T | Mmdcomp晶振 | CRYSTAL 3.6864MHZ 18PF SMD | 3.6864 MHz | D | 18pF |
| DF18CC1-4.500MHZ-T | Mmdcomp晶振 | CRYSTAL 4.5000MHZ 18PF SMD | 4.5 MHz | D | 18pF |
| DF18CC1-15.000MHZ-T | Mmdcomp晶振 | CRYSTAL 15.0000MHZ 18PF SMD | 15 MHz | D | 18pF |
| DF18CC1-3.579545MHZ-T | Mmdcomp晶振 | CRYSTAL 3.579545MHZ 18PF SMD | 3.579545 MHz | D | 18pF |
| DF18CC1-13.000MHZ-T | Mmdcomp晶振 | CRYSTAL 13.0000MHZ 18PF SMD | 13 MHz | D | 18pF |
| DF18CC1-14.31818MHZ-T | Mmdcomp晶振 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz | D | 18pF |
| T10GC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | T | 10pF |
| X10CB1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | X | 10pF |
| X10CB1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz | X | 10pF |
| X10CB1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | X | 10pF |
| X10CB1-22.1184MHZ-T | Mmdcomp晶振 | CRYSTAL 22.1184MHZ 10PF SMD | 22.1184 MHz | X | 10pF |
| X10CB1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 10PF SMD | 27 MHz | X | 10pF |
| X10CB1-32.000MHZ-T | Mmdcomp晶振 | CRYSTAL 32.0000MHZ 10PF SMD | 32 MHz | X | 10pF |
| X10CB1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | X | 10pF |
| DF18CC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | D | 18pF |
| DF18CC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz | D | 18pF |
| DF18CC1-4.433619MHZ-T | Mmdcomp晶振 | CRYSTAL 4.433619MHZ 18PF SMD | 4.433619 MHz | D | 18pF |
| DF18CC1-19.6608MHZ-T | Mmdcomp晶振 | CRYSTAL 19.6608MHZ 18PF SMD | 19.6608 MHz | D | 18pF |
| DF18CC1-14.7456MHZ-T | Mmdcomp晶振 | CRYSTAL 14.7456MHZ 18PF SMD | 14.7456 MHz | D | 18pF |
| DF18CC1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 18PF SMD | 30 MHz | D | 18pF |
| DF18CC1-16.9344MHZ-T | Mmdcomp晶振 | CRYSTAL 16.9344MHZ 18PF SMD | 16.9344 MHz | D | 18pF |
| DF18CC1-6.144MHZ-T | Mmdcomp晶振 | CRYSTAL 6.1440MHZ 18PF SMD | 6.144 MHz | D | 18pF |
| DF18CC1-7.3728MHZ-T | Mmdcomp晶振 | CRYSTAL 7.3728MHZ 18PF SMD | 7.3728 MHz | D | 18pF |
| DF18CC1-4.194304MHZ-T | 石英晶体 | CRYSTAL 4.194304MHZ 18PF SMD | 4.194304 MHz | D | 18pF |
| DF18CC1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 18PF SMD | 18.432 MHz | D | 18pF |
| DF18CC1-15.360MHZ-T | Mmdcomp晶振 | CRYSTAL 15.3600MHZ 18PF SMD | 15.36 MHz | D | 18pF |
| DF18CC1-6.7458MHZ-T | Mmdcomp晶振 | CRYSTAL 6.7458MHZ 18PF SMD | 6.7458 MHz | D | 18pF |
| DF18CC1-18.000MHZ-T | Mmdcomp晶振 | CRYSTAL 18.0000MHZ 18PF SMD | 18 MHz | D | 18pF |
| DF18CC1-12.000MHZ-T | Mmdcomp晶振 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | D | 18pF |
| DF18CC1-4.9152MHZ-T | Mmdcomp晶振 | CRYSTAL 4.9152MHZ 18PF SMD | 4.9152 MHz | D | 18pF |
| DF18CC1-28.63636MHZ-T | Mmdcomp晶振 | CRYSTAL 28.63636MHZ 18PF SMD | 28.63636 MHz | D | 18pF |
| DF18CC1-6.000MHZ-T | Mmdcomp晶振 | CRYSTAL 6.0000MHZ 18PF SMD | 6 MHz | D | 18pF |
| DF18CC1-5.000MHZ-T | Mmdcomp晶振 | CRYSTAL 5.0000MHZ 18PF SMD | 5 MHz | D | 18pF |
| DF18CC1-13.500MHZ-T | Mmdcomp晶振 | CRYSTAL 13.5000MHZ 18PF SMD | 13.5 MHz | D | 18pF |
| DF18CC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz | D | 18pF |
| DF18CC1-11.0592MHZ-T | Mmdcomp晶振 | CRYSTAL 11.0592MHZ 18PF SMD | 11.0592 MHz | D | 18pF |
| DF18CC1-9.216MHZ-T | Mmdcomp晶振 | CRYSTAL 9.2160MHZ 18PF SMD | 9.216 MHz | D | 18pF |
| DF18CC1-12.288MHZ-T | Mmdcomp晶振 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz | D | 18pF |
| T10GC1-22.1184MHZ-T | Mmdcomp晶振 | CRYSTAL 22.1184MHZ 10PF SMD | 22.1184 MHz | T | 10pF |
| T10GC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | T | 10pF |
| T10GC1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | T | 10pF |
| T10GC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | T | 10pF |
| T10GC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | T | 10pF |
| T10GC1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 10PF SMD | 16.384 MHz | T | 10pF |
| T10GC1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | T | 10pF |
| X10CB1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | X | 10pF |
| X10CB1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | X | 10pF |
| X10CB1-26.000MHZ-T | Mmdcomp晶振 | CRYSTAL 26.0000MHZ 10PF SMD | 26 MHz | X | 10pF |
| X10CB1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | X | 10pF |
| X10CB1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 10PF SMD | 16.384 MHz | X | 10pF |
| WC26SMFD-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC26SM | 12.5pF |
| DF18CC1-8.000MHZ-T | Mmdcomp晶振 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz | D | 18pF |
| X10CB1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | X | 10pF |
| X10CB1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | X | 10pF |
| DF18CC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz | D | 18pF |
| T10GC1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 10PF SMD | 18.432 MHz | T | 10pF |
| X10CB1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | X | 10pF |
| T10GC1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | T | 10pF |
| X10CB1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 10PF SMD | 18.432 MHz | X | 10pF |
| T10GC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | T | 10pF |
| T10GC1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 10PF SMD | 27 MHz | T | 10pF |
| T10GC1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | T | 10pF |
| T10GC1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz | T | 10pF |
| DF18CC1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 18PF SMD | 27 MHz | D | 18pF |
