IQD进口晶振,HC49/4HSMX石英晶振,LFXTAL026911REEL,6G蓝牙晶振
频率：18.4320MHz
尺寸：11.4x3.8mm
IQD进口晶振,HC49/4HSMX石英晶振,LFXTAL026911REEL,6G蓝牙晶振，英国进口晶振，IQD伊克德晶振，型号：HC49/4HSMX，编码为：LFXTAL026911REEL，频率为：18.4320MHz 16PF SMD石英晶体，小体积晶振尺寸：11.4x3.8mm， 两脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，行业标准的低成本SMD版本的HC49/4H晶体，电阻焊接，在惰性气氛中密封，引线上的玻璃到金属密封引线安装在塑料成型器上，形成鸥翼安装。应用于：通讯设备，无线网络，蓝牙模块，医疗设备，数码电子，平板电脑，智能手机，车载电子，消费电子等应用。
订购热线：0755-2783-7683
IQD进口晶振,HC49/4HSMX石英晶振,LFXTAL026911REEL,6G蓝牙晶振，英国进口晶振，IQD伊克德晶振，型号：HC49/4HSMX，编码为：LFXTAL026911REEL，频率为：18.4320MHz 16PF SMD石英晶体，小体积晶振尺寸：11.4x3.8mm， 两脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，行业标准的低成本SMD版本的HC49/4H晶体，电阻焊接，在惰性气氛中密封，引线上的玻璃到金属密封引线安装在塑料成型器上，形成鸥翼安装。应用于：通讯设备，无线网络，蓝牙模块，医疗设备，数码电子，平板电脑，智能手机，车载电子，消费电子等应用。

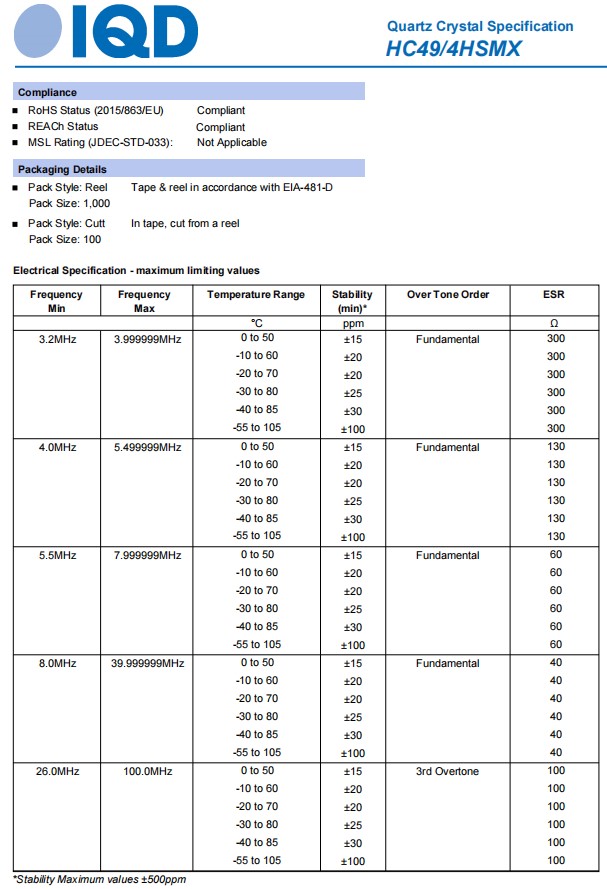

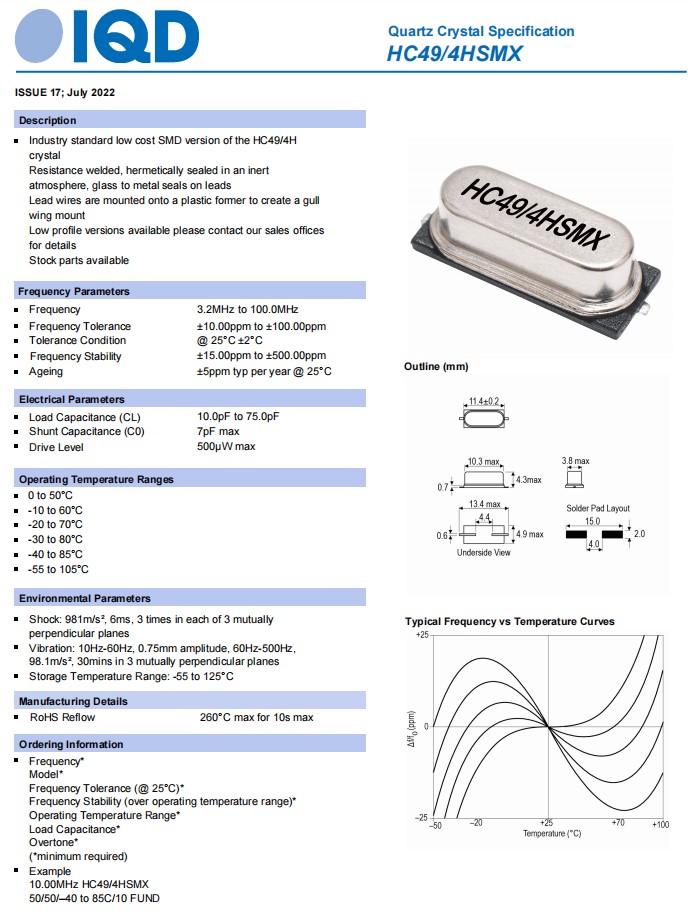

IQD进口晶振,HC49/4HSMX石英晶振,LFXTAL026911REEL,6G蓝牙晶振 参数表
Frequency Parameters
Frequency
18.4320 MHz
Frequency Tolerance
±10.00ppm to ±100.00ppm
Tolerance Condition
@ 25℃ ±2℃
Frequency Stability
±15.00ppm to ±500.00ppm
Ageing
±5ppm typ per year @ 25℃
Electrical Parameters
Load Capacitance (CL)
10.0pF to 75.0pF
Shunt Capacitance (C0)
7pF max
Drive Level
500uW max
Operating Temperature Ranges
0 to 50℃
-10 to 60℃
-20 to 70℃
-30 to 80℃
-40 to 85℃
-55 to 105℃

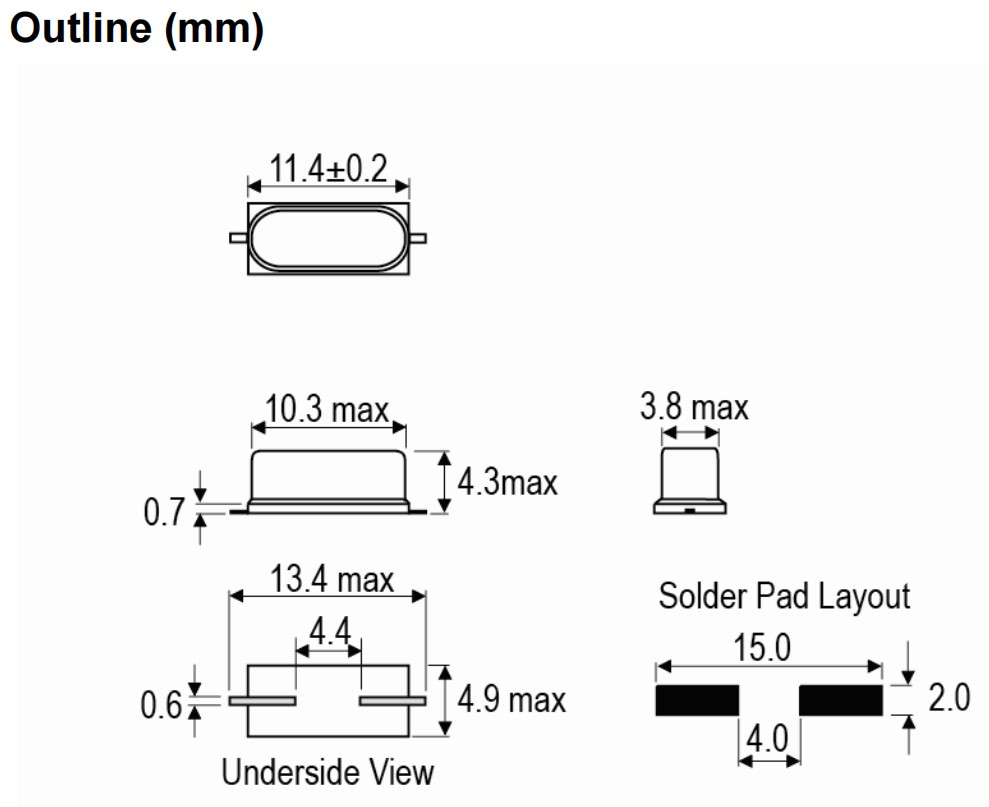

IQD进口晶振,HC49/4HSMX石英晶振,LFXTAL026911REEL,6G蓝牙晶振 尺寸图
| 晶振编码 | 制造商 | 系列 | 描述 | 频率 | 频率稳定性 |
| LFXTAL036356REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | ±50ppm |
| LFXTAL056463REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz | ±50ppm |
| LFXTAL016788REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 6.0000MHZ 30PF SMD | 6 MHz | ±50ppm |
| LFXTAL010689REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 7.3728MHZ 30PF SMD | 7.3728 MHz | ±50ppm |
| LFXTAL003151REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 8.0000MHZ 16PF SMD | 8 MHz | ±50ppm |
| LFXTAL051826REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 7.3728MHZ 18PF SMD | 7.3728 MHz | ±50ppm |
| LFXTAL021675REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 10.0000MHZ 18PF SMD | 10 MHz | ±50ppm |
| LFXTAL035939REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 22PF SMD | 20 MHz | ±30ppm |
| LFXTAL033580REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | ±50ppm |
| LFXTAL026908REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 14.7456MHZ 16PF SMD | 14.7456 MHz | ±50ppm |
| LFXTAL010043REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 30PF SMD | 12 MHz | ±50ppm |
| LFXTAL020131REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | ±50ppm |
| LFXTAL020423REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz | ±50ppm |
| LFXTAL026911REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 18.4320MHZ 16PF SMD | 18.432 MHz | ±50ppm |
| LFXTAL036034REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 16.0000MHZ 16PF SMD | 16 MHz | ±50ppm |
| LFXTAL061856REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | ±10ppm |
| LFXTAL012504REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 24.0000MHZ 16PF SMD | 24 MHz | ±50ppm |
| LFXTAL017145REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 10.0000MHZ 30PF SMD | 10 MHz | ±50ppm |
| LFXTAL010595REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 25.0000MHZ 16PF SMD | 25 MHz | ±50ppm |
| LFXTAL018153REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.9152MHZ 16PF SMD | 4.9152 MHz | ±50ppm |
| LFXTAL003181REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 16PF SMD | 20 MHz | ±50ppm |
| LFXTAL003260REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 3.6864MHZ 16PF SMD | 3.6864 MHz | ±50ppm |
| LFXTAL024940REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.0000MHZ 18PF SMD | 4 MHz | ±50ppm |
| LFXTAL003210REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 16PF SMD | 12 MHz | ±50ppm |
| LFXTAL003166REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 10.0000MHZ 16PF SMD | 10 MHz | ±50ppm |
| LFXTAL003519REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 11.0592MHZ 16PF SMD | 11.0592 MHz | ±50ppm |
| LFXTAL033158REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 3.6864MHZ 18PF SMD | 3.6864 MHz | ±50ppm |
| LFXTAL050510REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz | ±50ppm |
| LFXTAL029946REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.3320MHZ 20PF SMD | 4.332 MHz | ±50ppm |
| LFXTAL026900REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 6.0000MHZ 16PF SMD | 6 MHz | ±50ppm |
| LFXTAL003334REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 7.3728MHZ 16PF SMD | 7.3728 MHz | ±50ppm |
| LFXTAL015055REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 16.0000MHZ 20PF SMD | 16 MHz | ±50ppm |
| LFXTAL033575REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 7.3728MHZ 18PF SMD | 7.3728 MHz | ±50ppm |
| LFXTAL054555REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 25.0000MHZ 20PF SMD | 25 MHz | ±20ppm |
| LFXTAL003071REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.0000MHZ 16PF SMD | 4 MHz | ±50ppm |
| LFXTAL033416REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 6.0000MHZ 18PF SMD | 6 MHz | ±50ppm |
| LFXTAL019833REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.0000MHZ 20PF SMD | 4 MHz | ±50ppm |
| LFXTAL069804REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | ±30ppm |
| LFXTAL078542REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.0000MHZ 20PF SMD | 4 MHz | ±50ppm |
| LFXTAL003387REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 24.5760MHZ 20PF SMD | 24.576 MHz | ±50ppm |
| LFXTAL034654REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.0000MHZ 18PF SMD | 4 MHz | ±50ppm |
| LFXTAL029914REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 8.0000MHZ 16PF SMD | 8 MHz | ±50ppm |
| LFXTAL036274REEL | IQD晶振 | HC49/4HSMX | 8.0000MHZ 18PF 贴片晶振 | 8 MHz | ±50ppm |
| LFXTAL056855REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 13.0000MHZ 18PF SMD | 13 MHz | ±50ppm |
| LFXTAL032542REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 3.579545MHZ 18PF SMD | 3.579545 MHz | ±30ppm |
| LFXTAL030798REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 3.6864MHZ 16PF SMD | 3.6864 MHz | ±50ppm |
| LFXTAL011301REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 8.0000MHZ 30PF SMD | 8 MHz | ±50ppm |
| LFXTAL003237REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 16.0000MHZ 16PF SMD | 16 MHz | ±50ppm |
| LFXTAL026902REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 8.1920MHZ 16PF SMD | 8.192 MHz | ±50ppm |
| LFXTAL028392REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.9152MHZ 18PF SMD | 4.9152 MHz | ±50ppm |
| LFXTAL026548REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz | ±50ppm |
| LFXTAL028430REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 3.2768MHZ 18PF SMD | 3.2768 MHz | ±30ppm |
| LFXTAL028710REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | ±50ppm |
| LFXTAL035293REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 16PF SMD | 12 MHz | ±50ppm |
| LFXTAL012312REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 5.0000MHZ 30PF SMD | 5 MHz | ±50ppm |
| LFXTAL019949REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 5.0000MHZ 20PF SMD | 5 MHz | ±50ppm |
| LFXTAL017146REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 30PF SMD | 20 MHz | ±50ppm |
| LFXTAL003058REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 3.579545MHZ 16PF SMD | 3.579545 MHz | ±50ppm |
| LFXTAL012313REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 14.7456MHZ 30PF SMD | 14.7456 MHz | ±50ppm |
| LFXTAL011300REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 4.0000MHZ 30PF SMD | 4 MHz | ±50ppm |
| LFXTAL059980REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 27.0000MHZ 18PF SMD | 27 MHz | ±50ppm |
| LFXTAL029370REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz | ±50ppm |
| LFXTAL028928REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 11.0592MHZ 20PF SMD | 11.0592 MHz | ±50ppm |
| LFXTAL026911BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 18.4320MHZ 16PF SMD | 18.432 MHz | ±50ppm |
| LFXTAL026902BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 8.1920MHZ 16PF SMD | 8.192 MHz | ±50ppm |
| LFXTAL003181BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 16PF SMD | 20 MHz | ±50ppm |
| LFXTAL026548BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz | ±50ppm |
| LFXTAL010595BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 25.0000MHZ 16PF SMD | 25 MHz | ±50ppm |
| LFXTAL012504BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 24.0000MHZ 16PF SMD | 24 MHz | ±50ppm |
| LFXTAL003166BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 10.0000MHZ 16PF SMD | 10 MHz | ±50ppm |
| LFXTAL012313BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 14.7456MHZ 30PF SMD | 14.7456 MHz | ±50ppm |
| LFXTAL010689BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 7.3728MHZ 30PF SMD | 7.3728 MHz | ±50ppm |
| LFXTAL003260BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 3.6864MHZ 16PF SMD | 3.6864 MHz | ±50ppm |
| LFXTAL003210BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 16PF SMD | 12 MHz | ±50ppm |
| LFXTAL026900BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 6.0000MHZ 16PF SMD | 6 MHz | ±50ppm |
| LFXTAL003519BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 11.0592MHZ 16PF SMD | 11.0592 MHz | ±50ppm |
| LFXTAL010043BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 30PF SMD | 12 MHz | ±50ppm |
| LFXTAL011300BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 4.0000MHZ 30PF SMD | 4 MHz | ±50ppm |
| LFXTAL003071BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 4.0000MHZ 16PF SMD | 4 MHz | ±50ppm |
| LFXTAL003237BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 16.0000MHZ 16PF SMD | 16 MHz | ±50ppm |
| LFXTAL017146BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 30PF SMD | 20 MHz | ±50ppm |
| LFXTAL028710BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | ±50ppm |
| LFXTAL003151BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 8.0000MHZ 16PF SMD | 8 MHz | ±50ppm |
| LFXTAL063075BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 17.2032MHZ 22PF SMD | 17.2032 MHz | ±50ppm |
| LFXTAL021675BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 10.0000MHZ 18PF SMD | 10 MHz | ±50ppm |
| LFXTAL018153BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 4.9152MHZ 16PF SMD | 4.9152 MHz | ±50ppm |
| LFXTAL003387BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 24.5760MHZ 20PF SMD | 24.576 MHz | ±50ppm |
| LFXTAL020423BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz | ±50ppm |
| LFXTAL028392BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 4.9152MHZ 18PF SMD | 4.9152 MHz | ±50ppm |
| LFXTAL011301BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 8.0000MHZ 30PF SMD | 8 MHz | ±50ppm |
| LFXTAL012312BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 5.0000MHZ 30PF SMD | 5 MHz | ±50ppm |
| LFXTAL017145BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 10.0000MHZ 30PF SMD | 10 MHz | ±50ppm |
| LFXTAL016788BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 6.0000MHZ 30PF SMD | 6 MHz | ±50ppm |
| LFXTAL036356BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | ±50ppm |
| LFXTAL003334BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 7.3728MHZ 16PF SMD | 7.3728 MHz | ±50ppm |
| LFXTAL003058BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 3.579545MHZ 16PF SMD | 3.579545 MHz | ±50ppm |
| LFXTAL063075REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 17.2032MHZ 22PF SMD | 17.2032 MHz | ±50ppm |
| LFXTAL015023REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 18.4320MHZ 30PF SMD | 18.432 MHz | ±50ppm |
| LFXTAL051755REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 18.4320MHZ 16PF SMD | 18.432 MHz | ±50ppm |
| LFXTAL051235REEL | IQD晶振 | HC49/4HSMX | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz | ±50ppm |
| LFXTAL026908BULK | IQD晶振 | HC49/4HSMX | CRYSTAL 14.7456MHZ 16PF SMD | 14.7456 MHz | ±50ppm |
