Geyer物联网晶振,12.89495,KX-9B小体积晶振,6G蓝牙模块晶振

频率：8MHz

尺寸：5.0x3.2x1.1mm

Geyer物联网晶振,12.89495,KX-9B小体积晶振,6G蓝牙模块晶振，Geyer格耶电子晶振，丹麦进口晶振，型号：KX-9B，编码为：12.89495，谐振器，频率为：8MHz，负载电容16pF，精度±50ppm，小体积晶振尺寸：5.0x3.2x1.1mm封装，两脚贴片晶振，无源晶振，石英晶振，SMD石英晶体，石英晶体谐振器，无铅环保晶振。具有超小型，轻薄型，高可靠性，高性能，高品质，耐热及耐环境等特点。石英晶振被广泛应用于：移动通讯设备，无线网络，蓝牙模块，智能手机，平板电脑，安防设备，医疗色板，汽车电子，数码电子，智能家居等应用。

订购热线：0755-2783-7683

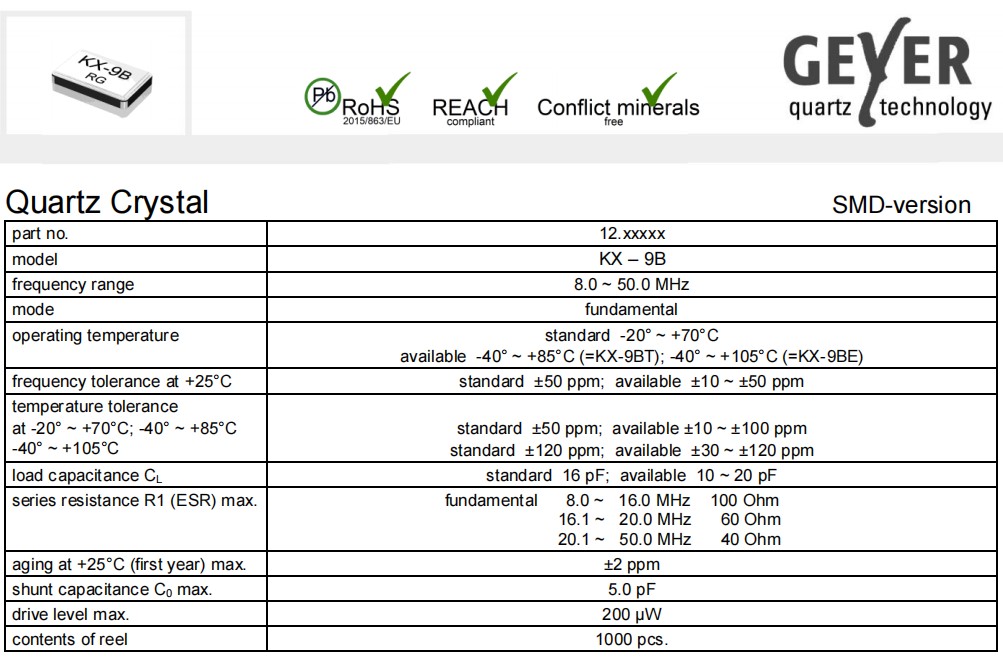

Geyer物联网晶振,12.89495,KX-9B小体积晶振,6G蓝牙模块晶振 参数表

part no.	12.89495
model	KX - 9B
frequency range	8.0 MHz
mode	fundamental
operating temperature	standard -20° ~ +70°C available -40° ~ +85°C (=KX-9BT); -40° ~ +105°C (=KX-9BE)
frequency tolerance at +25°C	standard ±50 ppm; available ±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C	standard ±50 ppm; available ±10 ~ ±100 ppm standard ±120 ppm; available ±30 ~ ±120 ppm
load capacitance CL	standard 16 pF; available 10 ~ 20 pF
series resistance R1 (ESR) max.	fundamental 8.0 ~ 16.0 MHz 16.1 ~ 20.0 MHz 20.1 ~ 50.0 MHz	100 Ohm 60 Ohm 40 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	5.0 pF
drive level max.	200 µW
contents of reel	1000 pcs.

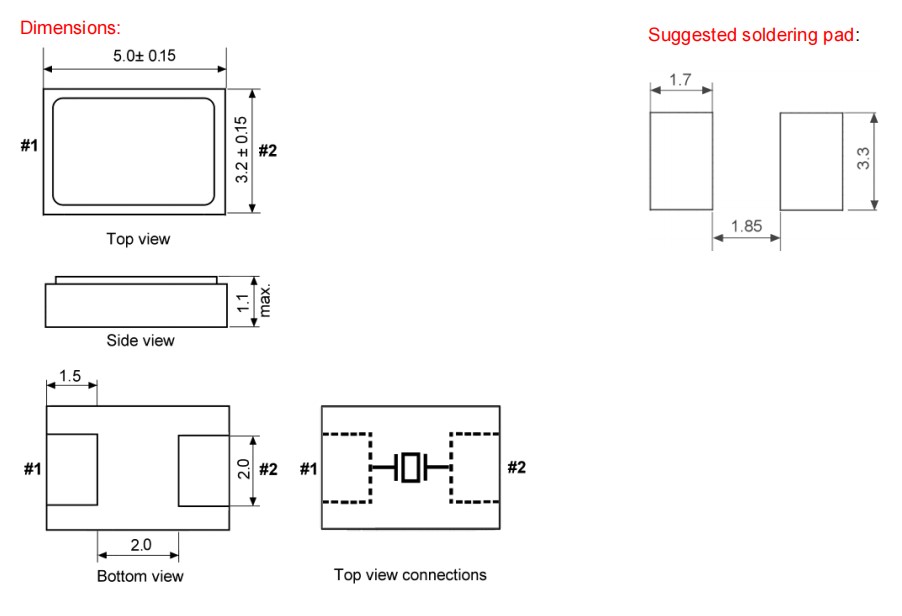

Geyer物联网晶振,12.89495,KX-9B小体积晶振,6G蓝牙模块晶振 尺寸图

Geyer物联网晶振,12.89495,KX-9B小体积晶振,6G蓝牙模块晶振

5032mm体积的贴片晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接，产品无铅对应，为无铅产品.

无源晶振	品牌	描述	型号	频率	频率温度性
12.85536	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	40 MHz	±20ppm
12.84816	Geyer晶振	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm
12.88722	Geyer晶振	Crystal 16.0Mhz SMD KX-7T 12pF,	KX-7T	16 MHz	±25ppm
12.84805	Geyer晶振	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±30ppm
12.86509	Geyer晶振	Cystal 48.0Mhz 10pF SMD	KX-6	48 MHz	±50ppm
12.8902	Geyer晶振	Crystal 32.0Mhz SMD KX-9A 16pF,	KX-9A	32 MHz	±10ppm
12.84813	Geyer晶振	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±15ppm
12.60233	Geyer晶振	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	25 MHz	±20ppm
12.85515	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5	27 MHz	±50ppm
12.86544	Geyer晶振	Crystal 16.0Mhz 10pF SMD	KX-7E	24 MHz	±120ppm
12.85547	Geyer晶振	CYSTAL 26.0MHZ 8PF SMD	KX-5T	26 MHz	±20ppm
12.8919	Geyer晶振	Crystal 8.0Mhz SMD KX-9AT 16pF,	KX-9AT	8 MHz	±30ppm
12.85562	Geyer晶振	CYSTAL 50.0MHZ 8PF SMD	KX-5T	50 MHz	±50ppm
12.60208	Geyer晶振	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	26 MHz	±10ppm
12.86531	Geyer晶振	Cystal 16.0Mhz 10pF SMD	KX-6T	16 MHz	±100ppm
12.88664	Geyer晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7	14.31818 MHz	±50ppm
12.89495	Geyer晶振	Crystal 8.0Mhz SMD KX-9BH 8pF, 4	KX-9BH	8 MHz	±50ppm
12.89103	Geyer晶振	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	10 MHz	±50ppm
12.887	Geyer晶振	Crystal 30.0Mhz 12pF SMD	KX-7	30 MHz	±50ppm
12.89131	Geyer晶振	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	48 MHz	±50ppm
12.86512	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6	20 MHz	±50ppm
12.89126	Geyer晶振	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	13.56 MHz	±120ppm
12.8655	Geyer晶振	Crystal 16.0Mhz 10pF SMD	KX-6E	16 MHz	±150ppm
12.86526	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±20ppm
12.6009	Geyer晶振	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	24 MHz	±20ppm
12.88701	石英晶体	Crystal 40.0Mhz 12pF SMD	KX-7T	40 MHz	±100ppm
12.88493	Geyer晶振	Crystal 33.33Mhz SMD KX-7T 12pF,	KX-7T	33.33333 MHz	±100ppm
12.85521	Geyer晶振	CYSTAL 26.0MHZ 10PF SMD	KX-5T	26 MHz	±20ppm
12.89078	Geyer晶振	Crystal 27.0Mhz SMD KX-9AT 16pF,	KX-9AT	27 MHz	±150ppm
12.86517	Geyer晶振	Cystal 24.0Mhz 10pF SMD	KX-6	24 MHz	±50ppm
12.84812	Geyer晶振	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm
12.88508	Geyer晶振	Crystal 24.0Mhz 12pF SMD	KX-7T	24 MHz	±50ppm
12.88711	Geyer晶振	Crystal 25.0Mhz SMD KX-7T 12pF,	KX-7T	25 MHz	±30ppm
12.85519	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5T	20 MHz	±50ppm
12.89027	Geyer晶振	Crystal 25.0Mhz SMD KX-9A 16pF,	KX-9A	25 MHz	±30ppm
12.85539	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	48 MHz	±20ppm
12.88721	Geyer晶振	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm
12.88667	Geyer晶振	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm
12.85517	Geyer晶振	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm
12.89017	Geyer晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm
12.89082	Geyer晶振	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm
12.60075	Geyer晶振	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm
12.89155	Geyer晶振	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm
12.88522	Geyer晶振	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm
12.88752	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm
12.85569	Geyer晶振	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm
12.88565	Geyer晶振	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm
12.85538	Geyer晶振	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm
12.86533	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm
12.89209	Geyer晶振	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm
12.8652	Geyer晶振	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm
12.86574	Geyer晶振	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm
12.85541	Geyer晶振	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm
12.84818	Geyer晶振	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm
12.86527	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm
12.85534	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm
12.86505	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm
12.60024	Geyer晶振	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm
12.84803	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm
12.85518	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm
12.8873	Geyer晶振	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm
12.86556	Geyer晶振	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm
12.88643	Geyer晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm
12.86511	Geyer晶振	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm
12.88523	Geyer晶振	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm
12.89288	Geyer晶振	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm
12.86536	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm
12.89029	Geyer晶振	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm
12.88799	Geyer晶振	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm
12.8481	Geyer晶振	Crystal 48.0MHz 8pF SMD	KX-4	48 MHz	±50ppm
12.84814	Geyer晶振	Crystal 32.0MHz 8pF SMD	KX-4	32 MHz	±15ppm
12.88756	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm
12.8556	Geyer晶振	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm
12.86561	Geyer晶振	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm
12.8877	Geyer晶振	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm
12.86564	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm
12.86592	Geyer晶振	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm
12.84801	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±50ppm
12.60023	Geyer晶振	Cystal 48.0Mhz 12pF SMD	KX-7E	48 MHz	±50ppm
12.85559	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5	40 MHz	±50ppm
