福克斯无源晶振HC49SDLF,FOXSDLF/250FR-20/TR,6G通讯晶振

频率：25.000MHz

尺寸：11.7x5.0mm

福克斯无源晶振HC49SDLF,FOXSDLF/250FR-20/TR,6G通讯晶振，美国进口晶振，FOX福克斯晶振，型号：FC4SD Former HC49SDLF系列，编码为：FOXSDLF/250FR-20/TR，频率为：25.000MHz，小体积晶振尺寸：11.7x5.0mm，两脚贴片晶振，石英晶振，无源晶振，SMD石英晶体，石英晶体谐振器，无铅环保晶振，公差降至±10PPM，稳定性至±5PPM。被广泛用于：移动通讯设备，平板电脑，智能手机，无线网络，蓝牙模块，车载控制器，医疗设备，安防设备，数码电子，物联网，智能家居等应用。

订购热线：0755-2783-7683

福克斯无源晶振HC49SDLF,FOXSDLF/250FR-20/TR,6G通讯晶振 参数表

PARAMETERS	MAX (unless otherwise noted)
Frequency Range	25.000 MHz
Frequency Tolerance @ 25ºC	(See options on page 2)
Frequency Stability, ref @ 25ºC	(See options below)
Temperature Range
Operating (TOPR)	(see options below)
Storage (TSTG)	-55ºC ~ +125ºC
Shunt Capacitance (Co)	7.0pF
Load Capacitance (Cl)	(See options on page 2)
Drive Level	0.5 mW (0.1 mW Typical)
Aging per year	±3 PPM
Maximum Soldering Temp / Time	260ºC / 10 Seconds
Moisture Sensitivity Level (MSL)	1
Termination Finish	Sn/3.0Ag/0.5Cu
Seal Method	Resistance Weld
Lead (Pb) Free	Yes
RoHS Compliant	No Exemptions

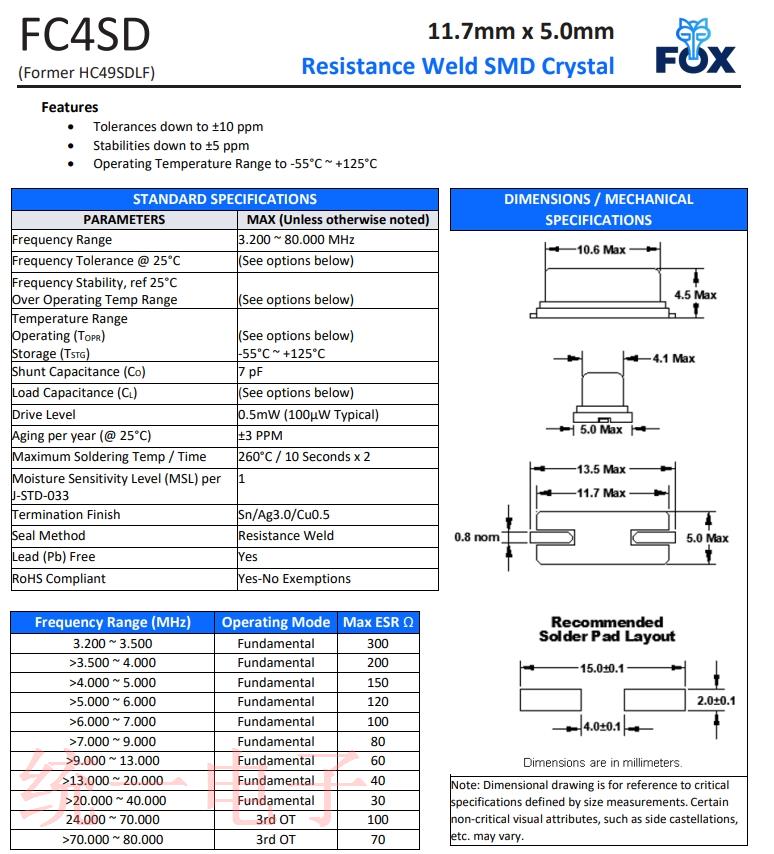

福克斯无源晶振HC49SDLF,FOXSDLF/250FR-20/TR,6G通讯晶振 尺寸图

福克斯无源晶振HC49SDLF,FOXSDLF/250FR-20/TR,6G通讯晶振

福克斯晶振公司自成立以来，Fox Electronics 一直是全球领先的频率控制解决方案供应商，拥有业内最广泛的先进频率控制产品，适合的应用从无线通信、计算机到仪器、航空航天等。该公司是锻造工艺突破方面的先驱，并因此而闻名，这一技术改变了频率控制行业的面貌。最近，该公司推出革命性的 XpressO 系列可配置振荡器，为购买者和设计人员带来了全新水平的交付灵活性，缩短了提前期并降低了成本.且完全不会折损最高的电气性能水平。Fox晶振公司主要生产石英晶体谐振器，晶体振荡器，贴片晶振，无源晶振，有源晶振，温补晶振等产品，所生产的产品受到各行各业的应用范围内，以技术占领市场，以质量赢得客户。

原厂编码	厂家	型号	频率	包装/封装	频率稳定度
FOXSDLF/120-20	Fox晶振	HC49SDLF	12MHz	HC49/US	±50ppm
FOXSDLF/0368-20	Fox晶振	HC49SDLF	3.6864MHz	HC49/US	±50ppm
FOXSDLF/115-20	Fox晶振	HC49SDLF	11.0592MHz	HC49/US	±50ppm
FOXSDLF/160-20	Fox晶振	HC49SDLF	16MHz	HC49/US	±50ppm
FOXSDLF/200-20	Fox晶振	HC49SDLF	20MHz	HC49/US	±50ppm
FOXSDLF/080-20	Fox晶振	HC49SDLF	8MHz	HC49/US	±50ppm
FOXSDLF/250F-20	Fox晶振	HC49SDLF	25MHz	HC49/US	±50ppm
FOXSDLF/147-20	Fox晶振	HC49SDLF	14.7456MHz	HC49/US	±50ppm
FOXSDLF/240F-20	Fox晶振	HC49SDLF	24MHz	HC49/US	±50ppm
FOXSDLF/080R-20/TR	Fox晶振	HC49SDLF	8MHz	HC49/US	±50ppm
FOXSDLF/036S	Fox晶振	HC49SDLF	3.579545MHz	HC49/US	±50ppm
FOXSDLF/120R-20/TR	进口晶振	HC49SDLF	12MHz	HC49/US	±50ppm
FOXSDLF/184-20	Fox晶振	HC49SDLF	18.432MHz	HC49/US	±50ppm
FOXSDLF/060-20	Fox晶振	HC49SDLF	6MHz	HC49/US	±50ppm
FOXSDLF/040	Fox晶振	HC49SDLF	4MHz	HC49/US	±50ppm
FOXSDLF/221-20	Fox晶振	HC49SDLF	22.1184MHz	HC49/US	±50ppm
FOXSDLF/073-20	Fox晶振	HC49SDLF	7.3728MHz	HC49/US	±50ppm
FOXSDLF/049-20	Fox晶振	HC49SDLF	4.9152MHz	HC49/US	±50ppm
FOXSDLF/250FR-20/TR	Fox晶振	HC49SDLF	25MHz	HC49/US	±50ppm
FOXSDLF/143-20	Fox晶振	HC49SDLF	14.31818MHz	HC49/US	±50ppm
FOXSDLF/245F-20	Fox晶振	HC49SDLF	24.576MHz	HC49/US	±50ppm
FOXSDLF/041	Fox晶振	HC49SDLF	4.194304MHz	HC49/US	±50ppm
FOXSDLF/100-20	Fox晶振	HC49SDLF	10MHz	HC49/US	±50ppm
FOXSDLF/160R-20/TR	Fox晶振	HC49SDLF	16MHz	HC49/US	±50ppm
FOXSDLF/200R-20/TR	Fox晶振	HC49SDLF	20MHz	HC49/US	±50ppm
FOXSDLF/245FR-20/TR	Fox晶振	HC49SDLF	24.576MHz	HC49/US	±50ppm
FOXSDLF/128-20	Fox晶振	HC49SDLF	12.288MHz	HC49/US	±50ppm
FOXSDLF/081-20	Fox晶振	HC49SDLF	8.192MHz	HC-49S	±50ppm
FOXSDLF/098-20	Fox晶振	HC49SDLF	9.8304MHz	HC-49S	±50ppm
FOXSDLF/196-20	Fox晶振	HC49SDLF	19.6608MHz	HC-49S	±50ppm
FOXSDLF/0368R-20/TR	Fox晶振	HC49SDLF	3.6864MHz	HC49/US	±50ppm
FOXSDLF/040R/TR	Fox晶振	HC49SDLF	4MHz	HC49/US	±50ppm
FOXSDLF/060R-20/TR	Fox晶振	HC49SDLF	6MHz	HC49/US	±50ppm
FOXSDLF/073R-20/TR	无源晶振	HC49SDLF	7.3728MHz	HC49/US	±50ppm
FOXSDLF/100R-20/TR	Fox晶振	HC49SDLF	10MHz	HC49/US	±50ppm
FOXSDLF/115R-20/TR	Fox晶振	HC49SDLF	11.0592MHz	HC49/US	±50ppm
FOXSDLF/143R-20/TR	Fox晶振	HC49SDLF	14.31818MHz	HC49/US	±50ppm
FOXSDLF/240FR-20/TR	Fox晶振	HC49SDLF	24MHz	HC49/US	±50ppm
FOXSDLF250F-20	Fox晶振	HC49SDLF	25MHz	HC-49S	±50ppm
