CRYSTEK压控晶振,CVHD-950X-122.880,航空电子设备晶振
频率：122.880MHz
尺寸：14mmx9mm
CRYSTEK压控晶振,CVHD-950X-122.880,航空电子设备晶振，美国进口晶振，CRYSTEK瑞斯克晶振，型号：CVHD-950，编码为：CVHD-950X-122.880，频率为：122.880MHz，小体积晶振，尺寸：14mmx9mm封装，四脚贴片晶振，CMOS时钟振荡器，VCXO晶振，压控晶振，超低相位噪声振荡器，电压3.3V，石英晶体振荡器， 有源晶振，石英晶振，SMD晶振。具有超小型，轻薄型，高精度，高性能，高品质等特点。应用范围包括高清晰度电视、航空电子设备、低相位信号源、测试和测量等。

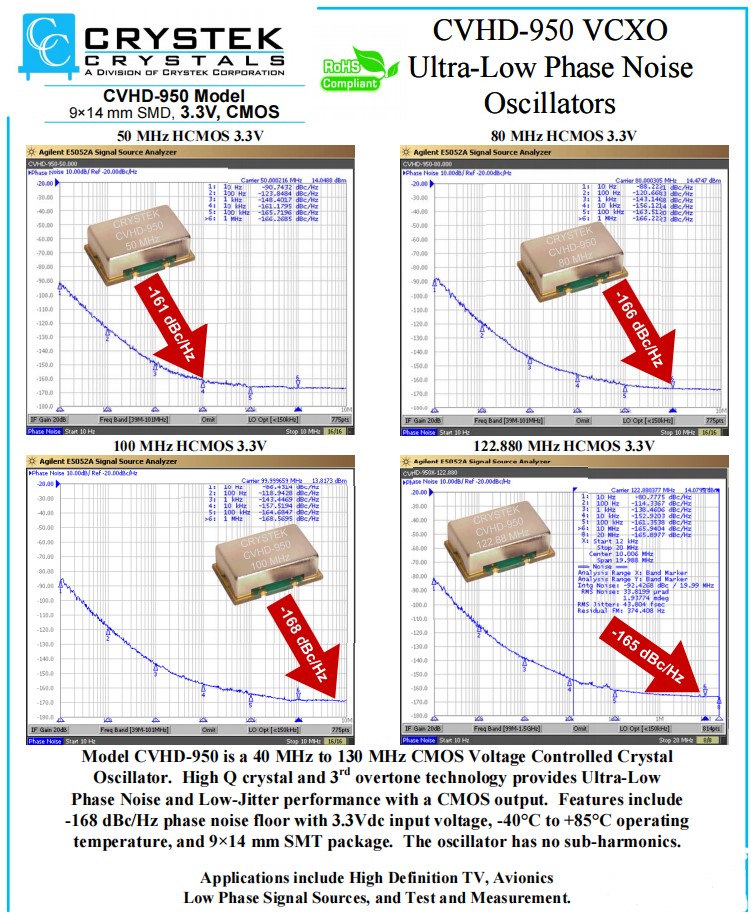

型号CVHD-950有源晶振是一个40 MHz到130 MHz的CMOS电压控制的晶体振荡器。高Q晶体和第三泛音技术提供了超低相位噪声和低抖动性能与CMOS输出。功能包括-168 dBc/Hz相位噪声地板，3.3Vdc输入电压，-40°C至+85°C工作温度，和9×14mm SMT封装。这个振荡器没有次谐波。
CRYSTEK压控晶振,CVHD-950X-122.880,航空电子设备晶振，美国进口晶振，CRYSTEK瑞斯克晶振，型号：CVHD-950，编码为：CVHD-950X-122.880，频率为：122.880MHz，小体积晶振，尺寸：14mmx9mm封装，四脚贴片晶振，CMOS时钟振荡器，VCXO晶振，压控晶振，超低相位噪声振荡器，电压3.3V，石英晶体振荡器， 有源晶振，石英晶振，SMD晶振。具有超小型，轻薄型，高精度，高性能，高品质等特点。应用范围包括高清晰度电视、航空电子设备、低相位信号源、测试和测量等。
型号CVHD-950有源晶振是一个40 MHz到130 MHz的CMOS电压控制的晶体振荡器。高Q晶体和第三泛音技术提供了超低相位噪声和低抖动性能与CMOS输出。功能包括-168 dBc/Hz相位噪声地板，3.3Vdc输入电压，-40°C至+85°C工作温度，和9×14mm SMT封装。这个振荡器没有次谐波。

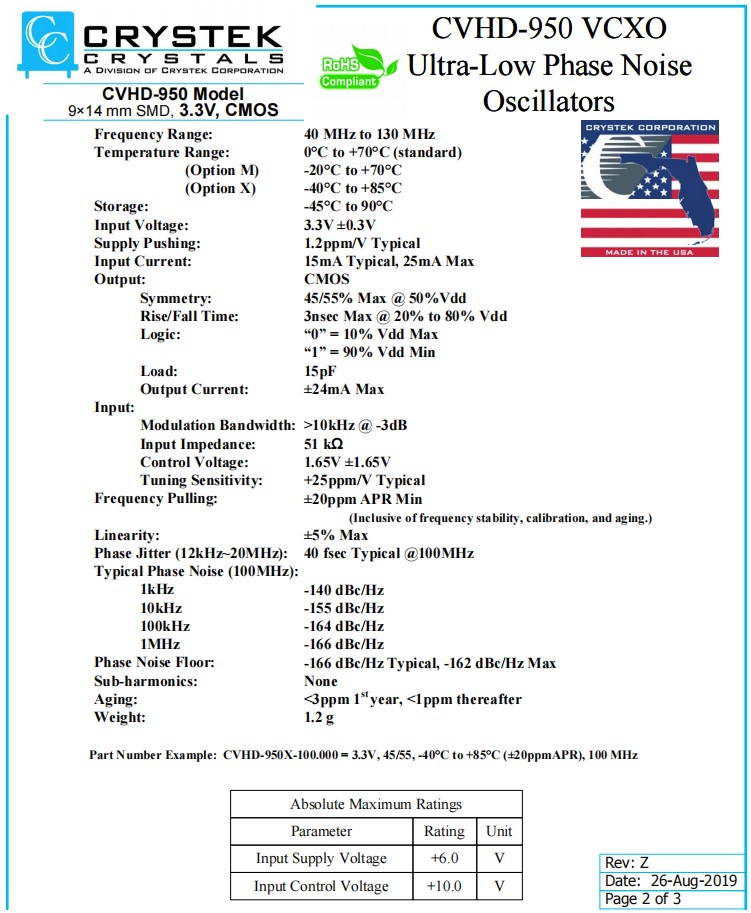

CRYSTEK压控晶振,CVHD-950X-122.880,航空电子设备晶振,参数表
Frequency Range:
122.880 MHz
Temperature Range:
0°C to +70°C (standard)
(Option M)
-20°C to +70°C
(Option X)
-40°C to +85°C
Storage:
-45°C to 90°C
Input Voltage:
3.3V ±0.3V
Supply Pushing:
1.2ppm/V Typical
Input Current:
15mA Typical, 25mA Max
Output:
CMOS
Symmetry:
45/55% Max @ 50%Vdd
Rise/Fall Time:
3nsec Max @ 20% to 80% Vdd
Logic:
“0” = 10% Vdd Max
“1” = 90% Vdd Min
Load:
15pF
Output Current:
±24mA Max
Input:
Modulation Bandwidth:
>10kHz @ -3dB
Input Impedance:
51 kΩ
Control Voltage:
1.65V ±1.65V
Tuning Sensitivity:
+25ppm/V Typical
Frequency Pulling:
±20ppm APR Min
(Inclusive of frequency stability, calibration, and aging.)
Linearity:
±5% Max
Phase Jitter (12kHz~20MHz):
40 fsec Typical @100MHz
Typical Phase Noise (100MHz):
1kHz
-140 dBc/Hz
10kHz
-155 dBc/Hz
100kHz
-164 dBc/Hz
1MHz
-166 dBc/Hz
Phase Noise Floor:
-166 dBc/Hz Typical, -162 dBc/Hz Max
Sub-harmonics:
None
Aging:
<3ppm 1st year, <1ppm thereafter
Weight:
1.2 g

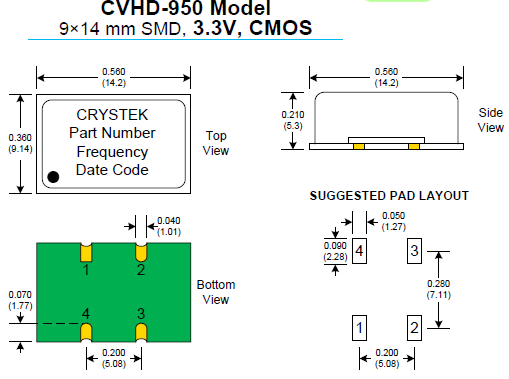

CRYSTEK压控晶振,CVHD-950X-122.880,航空电子设备晶振,尺寸图
