CTF8,CTF8-A2C2-32.768KD6,3x8mm,32.768KHz,Cardinal晶振

当前位置：首页 » 欧美晶振 » Cardinal晶振 » CTF8,CTF8-A2C2-32.768KD6,3x8mm,32.768KHz,Cardinal晶振

prevnext

CTF8,CTF8-A2C2-32.768KD6,3x8mm,32.768KHz,Cardinal晶振

频率：32.768KHz

尺寸：3.0x8.0mm

CTF8,CTF8-A2C2-32.768KD6,3x8mm,32.768KHz,Cardinal晶振，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CTF8，编码为：CTF8-A2C2-32.768KD6，工作温度范围：-40℃至+85℃，精度：±50ppm，频率：32.768K晶振，负载：6pF，小体积晶振尺寸：3.0x8.0mm，音叉晶体，两脚插件晶振，圆柱晶振，无源晶振，石英晶体，石英晶体谐振器，无铅晶振，石英晶振，应用于：电话机晶振，通讯晶振，数码电子晶振，智能家居晶振，高清电视机晶振，游戏机晶振，电脑晶振等应用。

订购热线：0755-2783-7683

20180421171456_6296统一

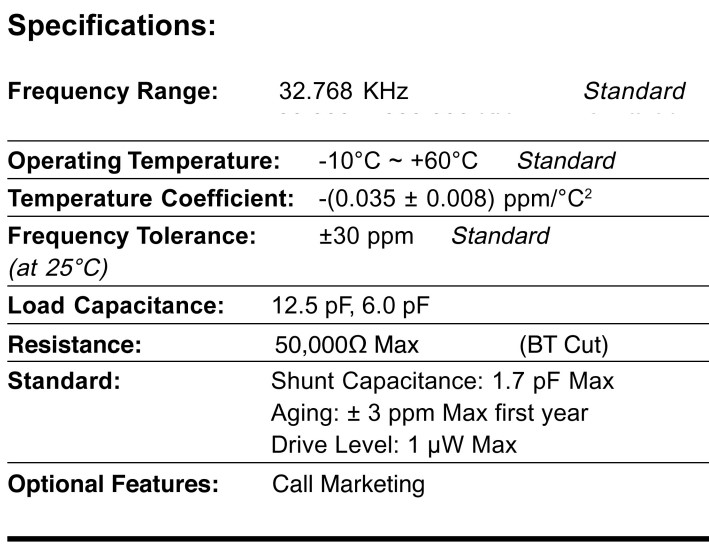

CTF8,CTF8-A2C2-32.768KD6,3x8mm,32.768KHz,Cardinal晶振,参数表

20181130160053_3983统一

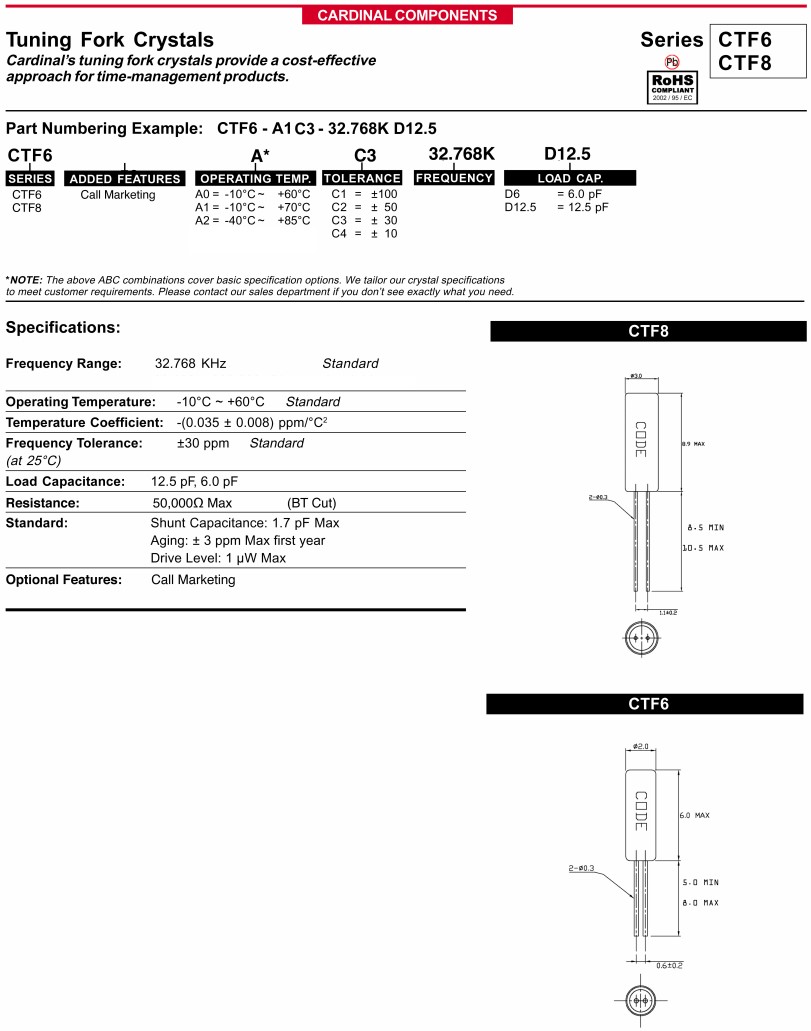

CTF8,CTF8-A2C2-32.768KD6,3x8mm,32.768KHz,Cardinal晶振, 尺寸图

进口石英晶振	厂家	型号	频率	频率稳定度	Description 参数
CPFBZ-A2C4-32.768KD6	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 6PF SMD
CPFBZ-A2C5-32.768KD6	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 6PF SMD
CSM1Z-A5B2C5-60-24.0D18	Cardinal晶振	CSM1	24MHz	±50ppm	CRYSTAL 24.0000MHZ 18PF SMD
CTF6-A2C5-32.768KD12.5	Cardinal晶振	CTF6	32.768kHz	-	CRYSTAL 32.7680KHZ 12.5PF T/H
CPFBZ-A2C4-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 12.5PF SMD
CSM1Z-A2B2C3-40-30.0D18	Cardinal晶振	CSM1	30MHz	±50ppm	CRYSTAL 30.0000MHZ 18PF SMD
CSM4Z-A2B3C3-40-12.0D18	Cardinal晶振	CSM4	12MHz	±30ppm	CRYSTAL 12.0000MHZ 18PF SMD
CSM4Z-A2B3C3-40-25.0D18-F	Cardinal晶振	CSM4	25MHz	±30ppm	CRYSTAL 25.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-16.0D18	Cardinal晶振	CX532	16MHz	±30ppm	CRYSTAL 16.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-22.1184D18	Cardinal晶振	CSM1	22.1184MHz	±50ppm	CRYSTAL 22.1184MHZ 18PF SMD
CX325Z-A5B2C5-50-20.0D18	Cardinal晶振	CX325	20MHz	±50ppm	CRYSTAL 20.0000MHZ 18PF SMD
CSM1Z-A5B2C3-40-25.0D18-F	Cardinal晶振	CSM1	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CPFBZ-A2C5-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 12.5PF SMD
CSM4Z-A2B3C3-40-10.0D18	Cardinal晶振	CSM4	10MHz	±30ppm	CRYSTAL 10.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-16.0D18	Cardinal晶振	CSM1	16MHz	±50ppm	CRYSTAL 16.0000MHZ 18PF SMD
CSM1Z-A5B2C5-50-20.0D18	Cardinal晶振	CSM1	20MHz	±50ppm	CRYSTAL 20.0000MHZ 18PF SMD
CSM4Z-A2B3C3-40-20.0D18	Cardinal晶振	CSM4	20MHz	±30ppm	CRYSTAL 20.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-12.0D18	Cardinal晶振	CX532	12MHz	±30ppm	CRYSTAL 12.0000MHZ 18PF SMD
CSM1Z-A0B2C3-80-13.5D18	Cardinal晶振	CSM1	13.5MHz	±50ppm	CRYSTAL 13.5000MHZ 18PF SMD
CSM1Z-A0B2C3-50-16.257D18	Cardinal晶振	CSM1	16.257MHz	±50ppm	CRYSTAL 16.2570MHZ 18PF SMD
CSM1Z-A5B2C3-40-24.576D18	Cardinal晶振	CSM1	24.576MHz	±50ppm	CRYSTAL 24.5760MHZ 18PF SMD
CSM1Z-A0B2C3-50-18.0D18	Cardinal晶振	CSM1	18MHz	±50ppm	CRYSTAL 18.0000MHZ 18PF SMD
CSM1Z-A0B2C3-40-25.0D18	Cardinal晶振	CSM1	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CSM1Z-A5B2C5-70-10.0D18	Cardinal晶振	CSM1	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CSM1-A1B2C3-50-20.0D16	Cardinal晶振	CSM1	20MHz	±50ppm	CRYSTAL 20.0000MHZ 16PF SMD
CSM1Z-A5B2C5-40-10.0D18	Cardinal晶振	CSM1	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-27.0D18	Cardinal晶振	CSM1	27MHz	±50ppm	CRYSTAL 27.0000MHZ 18PF SMD
CSM1Z-A5B2C3-40-27.0D18-F	Cardinal晶振	CSM1	27MHz	±50ppm	CRYSTAL 27.0000MHZ 18PF SMD
CSM1Z-A5B2C3-40-18.0D18	Cardinal晶振	CSM1	18MHz	±50ppm	CRYSTAL 18.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-24.0D18	Cardinal晶振	CSM1	24MHz	±50ppm	CRYSTAL 24.0000MHZ 18PF SMD
CSM1Z-A0B2C3-80-10.0D18	Cardinal晶振	CSM1	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CSM1Z-A5B2C3-40-12.0D18	Cardinal晶振	CSM1	12MHz	±50ppm	CRYSTAL 12.0000MHZ 18PF SMD
CSM1Z-A0B2C3-80-12.0D18	Cardinal晶振	CSM1	12MHz	±50ppm	CRYSTAL 12.0000MHZ 18PF SMD
CSM1Z-A5B2C3-30-25.0D20	谐振器	CSM1	25MHz	±50ppm	CRYSTAL 25.0000MHZ 20PF SMD
CSM4Z-A2B3C3-40-16.0D18	Cardinal晶振	CSM4	16MHz	±30ppm	CRYSTAL 16.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CX5	27MHz	±50ppm	CRYSTAL 27.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	±50ppm	CRYSTAL 24.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CX5	24.576MHz	±50ppm	CRYSTAL 24.5760MHZ 18PF SMD
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	±50ppm	CRYSTAL 24.0000MHZ 18PF SMD
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	±50ppm	CRYSTAL 16.0000MHZ 18PF SMD
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	±50ppm	CRYSTAL 16.0000MHZ 18PF SMD
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-27.0D18	Cardinal晶振	CX532	27MHz	±30ppm	CRYSTAL 27.0000MHZ 18PF SMD
CX532Z-A5B3C5-70-20.0D18	Cardinal晶振	CX532	20MHz	±30ppm	CRYSTAL 20.0000MHZ 18PF SMD
CX532Z-A5B3C5-70-12.0D18	Cardinal晶振	CX532	12MHz	±30ppm	CRYSTAL 12.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-30.0D18	Cardinal晶振	CX532	30MHz	±30ppm	CRYSTAL 30.0000MHZ 18PF SMD
CX532Z-A5B3C5-70-27.0D18	Cardinal晶振	CX532	27MHz	±30ppm	CRYSTAL 27.0000MHZ 18PF SMD
CX532AZ-A5B2C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CX532Z-A5B3C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±30ppm	CRYSTAL 25.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-20.0D18	Cardinal晶振	CX532	20MHz	±30ppm	CRYSTAL 20.0000MHZ 18PF SMD
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CX5	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CSM1Z-A5B2C3-40-16.0D18	Cardinal晶振	CSM1	16MHz	±50ppm	CRYSTAL 16.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-20.0D18	Cardinal晶振	CSM1	20MHz	±50ppm	CRYSTAL 20.0000MHZ 18PF SMD
CSM1Z-A1B2C3-40-24-0D12	Cardinal晶振	CSM1	24MHz	±50ppm	CRYSTAL 24.0000MHZ 12PF SMD
CSM1Z-A5B2C5-40-16.0D18	Cardinal晶振	CSM1	16MHz	±50ppm	CRYSTAL 16.0000MHZ 18PF SMD
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal晶振	CSM1	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CSM1Z-A5B2C5-40-12.0D18	Cardinal晶振	CSM1	12MHz	±50ppm	CRYSTAL 12.0000MHZ 18PF SMD
CPFBZ-A2C5-32.768D6	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 6PF SMD
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	±50ppm	CRYSTAL 12.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	±50ppm	CRYSTAL 12.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-25D18	Cardinal晶振	CX5	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CSM1Z-A2B4C7-60-24.0D18-F	Cardinal晶振	CSM1	24MHz	±10ppm	CRYSTAL 24.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±30ppm	CRYSTAL 25.0000MHZ 18PF SMD

20180421171435_0823统一

联系统一电子

服务热线：0755-2783-7683

手机联系：136-3164-7825

Q Q联系：761385328

邮箱：tongyidz@163.com

地址：深圳市宝安区西乡镇南区新一村2栋

CTF8 CTF8-A2C2-32.768KD6 3x8mm 32.768KHz Cardinal晶振

采购：CTF8,CTF8-A2C2-32.768KD6,3x8mm,32.768KHz,Cardinal晶振

*联系人：
*手机：
公司名称：
邮箱：
电话：
地址：
*采购意向：
*验证码：
