CPFB,8038mm,CPFBZ-A2C5-32.768KD12.5,Cardinal晶振,32.768KHz

频率：32.768KHz

尺寸：8.7x3.7x2.4mm

CPFB,8038mm,CPFBZ-A2C5-32.768KD12.5,Cardinal晶振,32.768KHz，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CPFB，编码为：CPFBZ-A2C5-32.768KD12.5，频率为：32.768K晶振，精度：±20ppm，工作温度范围：-40℃至+85℃，负载：12.5pF，小体积晶振尺寸：8.7x3.7x2.4mm封装，四脚贴片晶振，石英晶振，无源晶振，音叉晶体，石英晶体谐振器，SMD晶振。具有超小型，轻薄型，高性能，高品质，高质量，耐热及耐环境等特点。被广泛应用于：通讯设备晶振，无线蓝牙模块，RTC应用，时钟晶振，汽车电子晶振，仪器仪表设备，智能家居等应用。

订购热线：0755-2783-7683

CPFB,8038mm,CPFBZ-A2C5-32.768KD12.5,Cardinal晶振,32.768KHz，产品特点：

•封装是自动化表面安装组装和回流实践的理想选择
•超小型，陶瓷谐振器
•行业标准足迹
•32.768 kHz

20180421171456_6296统一

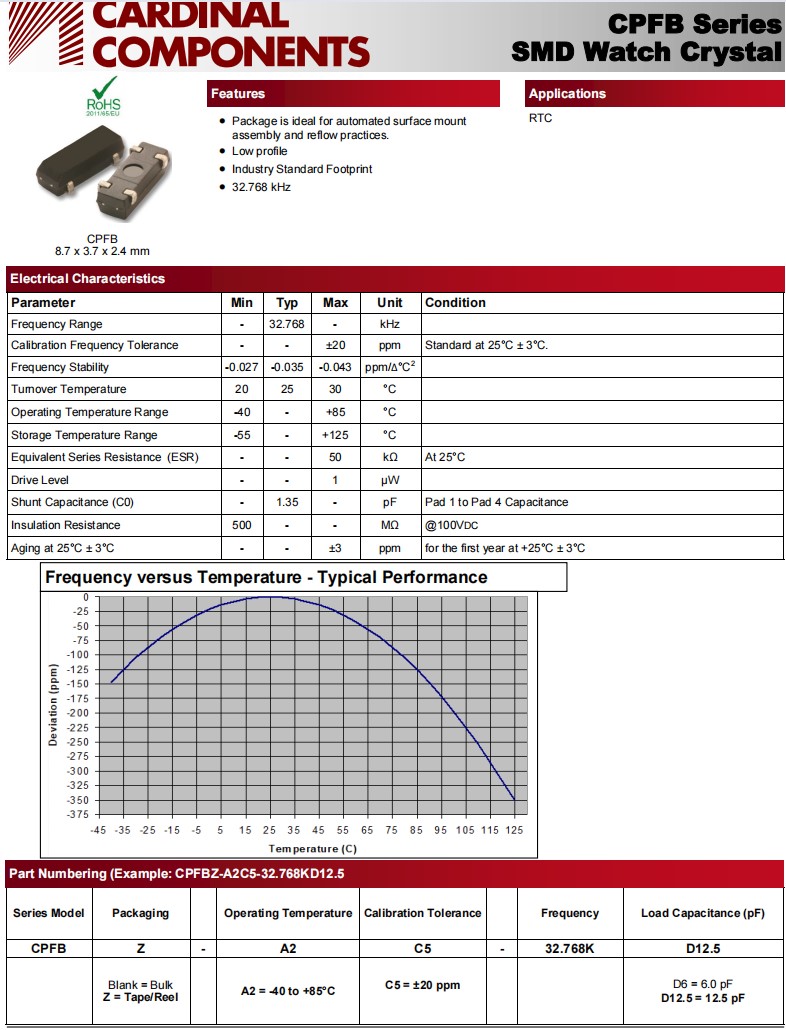

CPFB,8038mm,CPFBZ-A2C5-32.768KD12.5,Cardinal晶振,32.768KHz,参数表

Parameter	Min	Typ	Max	Unit	Condition
Frequency Range	-	32.768	-	kHz
Calibration Frequency Tolerance	-	-	±20	ppm	Standard at 25°C ± 3°C.
Frequency Stability	-0.027	-0.035	-0.043	ppm/△°C2
Turnover Temperature	20	25	30	°C
Operating Temperature Range	-40	-	+85	°C
Storage Temperature Range	-55	-	+125	°C
Equivalent Series Resistance (ESR)	-	-	50	kΩ	At 25°C
Drive Level	-	-	1	µW
Shunt Capacitance (C0)	-	1.35	-	pF	Pad 1 to Pad 4 Capacitance
Insulation Resistance	500	-	-	MΩ	@100VDC
Aging at 25°C ± 3°C	-	-	±3	ppm	for the first year at +25°C ± 3°C

20181130160053_3983统一

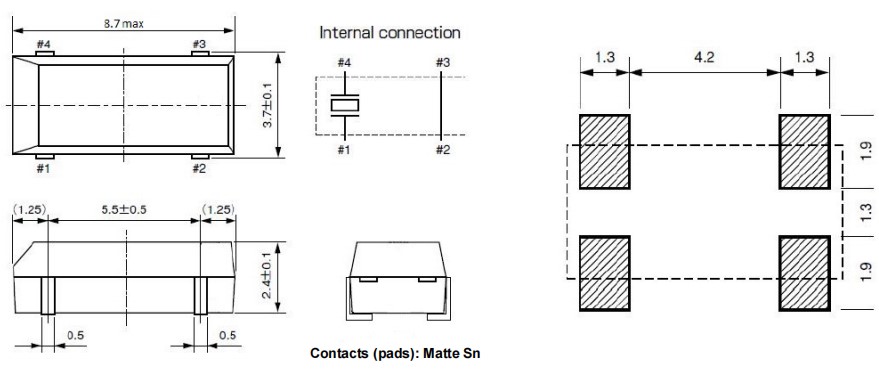

CPFB,8038mm,CPFBZ-A2C5-32.768KD12.5,Cardinal晶振,32.768KHz, 尺寸图

石英晶体	厂家	型号	频率	频率稳定度	Description 参数
CPFBZ-A2C4-32.768KD6	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 6PF SMD
CPFBZ-A2C5-32.768KD6	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 6PF SMD
CX5Z-A5B2C5-70-7.37280D18	Cardinal晶振	CX5	7.3728MHz	±50ppm	CRYSTAL 7.3728MHZ 18PF SMD
CX532Z-A2B3C5-70-12.288D18	Cardinal晶振	CX532	12.288MHz	±30ppm	CRYSTAL 12.2880MHZ 18PF SMD
CPFBZ-A2C4-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 12.5PF SMD
CX532Z-A2B3C5-70-16.0D18	Cardinal晶振	CX532	16MHz	±30ppm	CRYSTAL 16.0000MHZ 18PF SMD
CX5Z-ARB2C5-70-7.3728D18	Cardinal晶振	CX5	7.3728MHz	±50ppm	CRYSTAL 7.3728MHZ 18PF SMD
CX635A-A5B2C3-40-18.432D13	Cardinal晶振	CX635A	18.432MHz	±50ppm	CRYSTAL 18.4320MHZ 13PF SMD
CPFBZ-A2C5-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 12.5PF SMD
CX532Z-A2B3C5-70-12.0D18	Cardinal晶振	CX532	12MHz	±30ppm	CRYSTAL 12.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CX5	27MHz	±50ppm	CRYSTAL 27.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	±50ppm	CRYSTAL 24.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CX5	24.576MHz	±50ppm	CRYSTAL 24.5760MHZ 18PF SMD
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CX5	8MHz	±50ppm	CRYSTAL 8.0000MHZ 18PF SMD
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	±50ppm	CRYSTAL 24.0000MHZ 18PF SMD
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	±50ppm	CRYSTAL 16.0000MHZ 18PF SMD
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	±50ppm	CRYSTAL 16.0000MHZ 18PF SMD
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-1966080D18	Cardinal晶振	CX532	19.6608MHz	±30ppm	CRYSTAL 19.6608MHZ 18PF SMD
CX532Z-A2B3C5-70-33.0D18	Cardinal晶振	CX532	33MHz	±30ppm	CRYSTAL 33.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-27.0D18	Cardinal晶振	CX532	27MHz	±30ppm	CRYSTAL 27.0000MHZ 18PF SMD
CX532Z-A5B3C5-70-20.0D18	无源晶振	CX532	20MHz	±30ppm	CRYSTAL 20.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-14.7456D18	Cardinal晶振	CX532	14.7456MHz	±30ppm	CRYSTAL 17.7456MHZ 18PF SMD
CX532Z-A5B3C5-70-12.0D18	Cardinal晶振	CX532	12MHz	±30ppm	CRYSTAL 12.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-50.0D18	Cardinal晶振	CX532	50MHz	±30ppm	CRYSTAL 50.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-30.0D18	Cardinal晶振	CX532	30MHz	±30ppm	CRYSTAL 30.0000MHZ 18PF SMD
CX532Z-A5B3C5-70-27.0D18	Cardinal晶振	CX532	27MHz	±30ppm	CRYSTAL 27.0000MHZ 18PF SMD
CX532AZ-A5B2C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CX532Z-A5B3C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±30ppm	CRYSTAL 25.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-20.0D18	Cardinal晶振	CX532	20MHz	±30ppm	CRYSTAL 20.0000MHZ 18PF SMD
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CX5	8MHz	±50ppm	CRYSTAL 8.0000MHZ 18PF SMD
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CX5	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CX532Z-A2B3C5-70-8.0D18	Cardinal晶振	CX532	8MHz	±30ppm	CRYSTAL 8.0000MHZ 18PF SMD
CPFBZ-A2C5-32.768D6	Cardinal晶振	CPFB	32.768kHz	-	CRYSTAL 32.7680KHZ 6PF SMD
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	±50ppm	CRYSTAL 12.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	±50ppm	CRYSTAL 12.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CX5Z-A5B2C5-40-25D18	Cardinal晶振	CX5	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CX635BZ-A1B2C3-80-14.31818D20	Cardinal晶振	CX635B	14.31818MHz	±50ppm	CRYSTAL 14.31818MHZ 20PF SMD
CX532Z-A5B3C5-70-18.432D18	Cardinal晶振	CX532	18.432MHz	±30ppm	CRYSTAL 18.4320MHZ 18PF SMD
CX532Z-A2B3C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±30ppm	CRYSTAL 25.0000MHZ 18PF SMD
