最小尺寸的超低抖动晶体振荡器(XO),DIODES晶振UF系列超低抖动，微型，晶体振荡器是用于高性能计算和网络的前沿要求最苛刻的行业高级应用。Automotivecompliant变体可用。 这种新型晶体振荡器支持广泛的应用要求非常低的噪音，采用最小的工业标准封装之一。较大的包装也可满足灵活设计需求。 有多种输出标准可供选择: LVPECL，LVDS和HCSL，以及2.5V和3.3V的电源电压， 提供客户指定的频率 高达212.5MHz，温度稳定性达到25PPM。
特点优势：
UF系列为高速提供超低抖动，为高性能应用提供尽可能小的封装。
超低均方根抖动(典型值低至50fs) 超过苛刻应用的要求，并且提供广泛的设计余量
有源晶振2.5毫米x2.0mm毫米尺寸包装: 优化电路板空间以支持微型系统设计
宽温度范围(-40℃至125℃)和符合汽车行业标准(符合AEC-Q104)的版本，支持在恶劣环境下运行的加固设备设计环境
应用程序：光学模块，网络系统，测试和测量，装备，112G系列应用，PCIe5.0建筑，系统，服务器和存储系统，专业视频设备，FPGA/ASIC参考时钟,发电机
| Manufacturer Part Number原厂代码 | Manufacturer品牌 | Series型号 | Frequency 频率 | Frequency Stability频率稳定度 | Operating Temperature 工作温度 |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -40°C ~ 85°C |
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -40°C ~ 85°C |

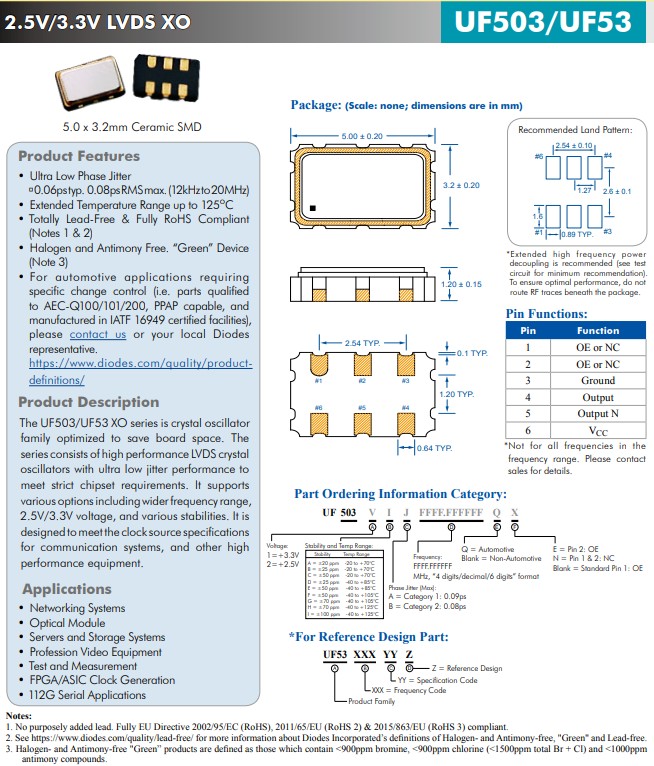

UF503/UF53 XO系列是经过优化的晶体振荡器系列，可节省电路板空间。该系列由具有超低抖动性能的高性能LVDS差分晶体振荡器组成，可满足严格的芯片组要求。它支持多种选择，包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。
