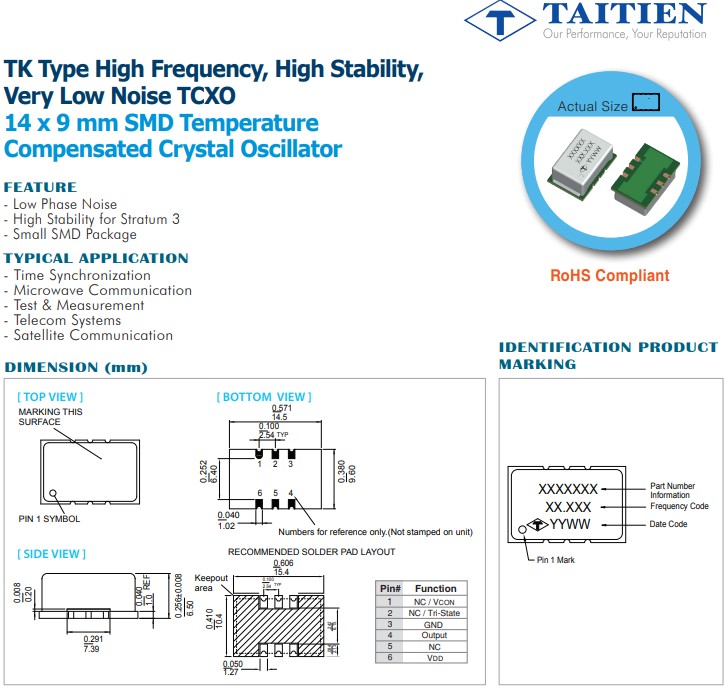

TK型高频高稳定性低噪音VCTCXO,TTETKLSANF-20.000000,压控温补晶体振荡器,温补晶振

返回列表 来源：统一电子 查看手机网址
扫一扫!TK型高频高稳定性低噪音VCTCXO,TTETKLSANF-20.000000,压控温补晶体振荡器,温补晶振扫一扫!
 浏览：- 发布日期：2022-06-23 10:26:16【大 中 小】

Taitien晶振的高性能TK TCXO/VCTCXO系列为高达150MHz的频率提供第3层性能。TK类型在12kHz至20MHz时具有业界领先的60fs相位抖动，非常适合对频率时基有严格要求的应用，例如测试和测量、光网络、卫星通信等。它还具有低功耗的特点以及14x9x6.5mm的小型化封装尺寸，压控温补晶振，主要特点：

频率范围：40 MHz至150MHz
Stratum 3 的频率稳定性：±0.28ppm（总体±4.6ppm）
温度范围：-40~85 ?C
电源电压：5V或3.3V
功耗：≦ 35 mA
输出电压选项：CMOS、正弦波
典型应用：时间同步，微波通信，测试和测量，电信系统，光网络，卫星通信

TK型高频高稳定性低噪音VCTCXO,TTETKLSANF-20.000000,压控温补晶体振荡器,温补晶振

类型

传统知识

照片 TK
尺寸

14 x 9 x 6.5 毫米

电源电压(V DD )

5V、3.3V

频率范围

40兆赫~150兆赫

标准频率

98.304 兆赫，100 兆赫

输出电压

CMOS @ 5 V、3.3 V
正弦波 @ 5 V

目前的消费

 35毫安

频率稳定性

±0.28 ppm

整体频率稳定性

（包括初始频率容差、稳定性、电源电压变化、负载变化和 10 年老化）

± 4.6 ppm

工作温度范围

-40 ~ 85摄氏度

频率调谐范围

≧ ±5 ppm 或 ≧ ±10 ppm

控制电压范围 Vc

0.0 V 至 3.3 V @V DD = 3.3 V
0.0 V 至 5.0 V @V DD = 5 V

相位噪声 @ 100 MHz，3.3 V
偏移频率
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz

≦ -90 dBc/Hz
≦ -120 dBc/Hz
≦ -143 dBc/Hz
≦ -155 dBc/Hz
≦ -161 dBc/Hz

RMS 抖动 (@12kHz – 20MHz)

典型：60 fs
