当前位置：首页 » 新闻资讯 » 高性能CMOS晶体振荡器HX501系列,HX5013B0016.000000,5032mm晶振,ECERA贴片晶振

高性能CMOS晶体振荡器HX501系列,HX5013B0016.000000,5032mm晶振,ECERA贴片晶振

返回列表 来源：统一电子 查看手机网址
扫一扫!高性能CMOS晶体振荡器HX501系列,HX5013B0016.000000,5032mm晶振,ECERA贴片晶振扫一扫!
 浏览：- 发布日期：2022-07-13 10:25:45【大 中 小】

HX501 XO系列是高性能CMOS晶体振荡器系列，支持高温且抖动性能极低。HX501系列小体积晶振尺寸5.0x3.2mm、高温CMOS晶体振荡器，它支持各种选项，包括更宽的频率范围、1.8V/2.5V/3.3V电压以及在宽温度范围内的各种稳定性。它旨在满足通信系统、工业应用和其他高性能设备的时钟源规范。

特征：
支持高达125℃的高温 耐高温晶振
低相位抖动- < 1ps RMS最大值。
宽频率范围- 1.75~161MHz
更厚的晶体以提高可靠性
低电源电流-最大40mA。
无铅且符合RoHS标准
应用：
网络系统
工业系统
专业视频设备
测试和测量

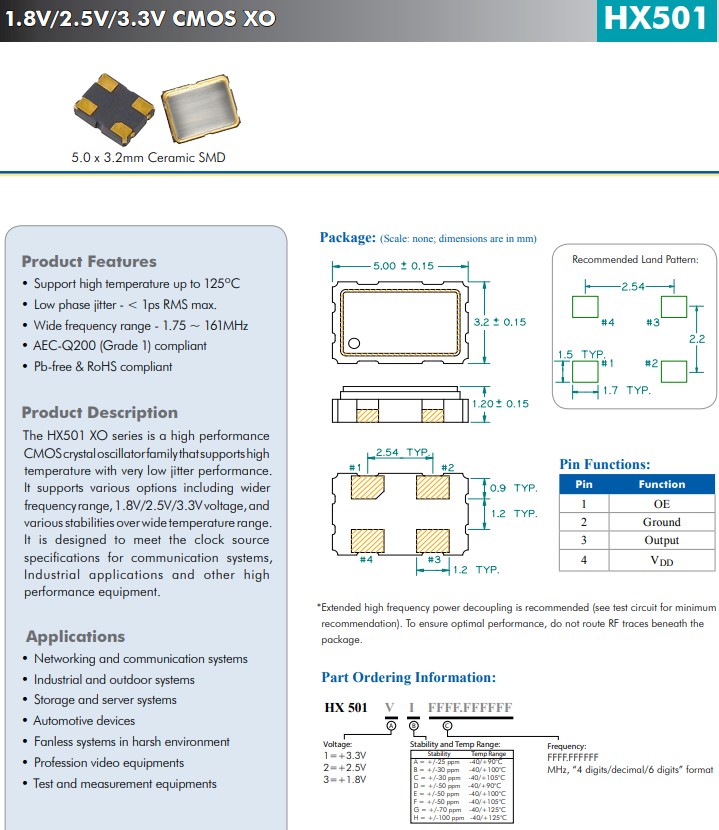

高性能CMOS晶体振荡器HX501系列,HX5013B0016.000000,5032mm晶振,ECERA贴片晶振

FD1100008 Diodes Incorporated SaRonix-eCera™ FD 11.0592MHz ±50ppm -40°C ~ 85°C
FD1120009 Diodes Incorporated SaRonix-eCera™ FD 11.2896MHz ±50ppm -20°C ~ 70°C
FD1200028 Diodes Incorporated SaRonix-eCera™ FD 12MHz ±50ppm -20°C ~ 70°C
FD1200029 Diodes Incorporated SaRonix-eCera™ FD 12MHz ±25ppm -20°C ~ 70°C
FD1200030 Diodes Incorporated SaRonix-eCera™ FD 12MHz ±50ppm -40°C ~ 85°C
FD1220014 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz ±50ppm -20°C ~ 70°C
FD1220015 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz ±50ppm -40°C ~ 85°C
FD1220016 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz ±25ppm -20°C ~ 70°C
FD1350007 Diodes Incorporated SaRonix-eCera™ FD 13.5MHz ±50ppm -20°C ~ 70°C
FD1430016 Diodes Incorporated SaRonix-eCera™ FD 14.3181MHz ±50ppm -20°C ~ 70°C
FD1430018 Diodes Incorporated SaRonix-eCera™ FD 14.3181MHz ±50ppm -40°C ~ 85°C
FD1470015 Diodes Incorporated SaRonix-eCera™ FD 14.7456MHz ±50ppm -20°C ~ 70°C
FD1470017 Diodes Incorporated SaRonix-eCera™ FD 14.7456MHz ±50ppm -40°C ~ 85°C
FD1600015 Diodes Incorporated SaRonix-eCera™ FD 16MHz ±50ppm -20°C ~ 70°C
FD1600016 Diodes Incorporated SaRonix-eCera™ FD 16MHz ±25ppm -20°C ~ 70°C
FD1600017 Diodes Incorporated SaRonix-eCera™ FD 16MHz ±50ppm -40°C ~ 85°C
FD1630009 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz ±50ppm -20°C ~ 70°C
FD1630010 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz ±25ppm -20°C ~ 70°C
FD1630011 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz ±50ppm -40°C ~ 85°C
FD1630012 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz ±50ppm -40°C ~ 85°C
FD1650001 Diodes Incorporated SaRonix-eCera™ FD 16.5MHz ±50ppm -20°C ~ 70°C
FD1800003 Diodes Incorporated SaRonix-eCera™ FD 18MHz ±50ppm -40°C ~ 85°C
FD1840014 Diodes Incorporated SaRonix-eCera™ FD 18.432MHz ±50ppm -20°C ~ 70°C
FD1940001 Diodes Incorporated SaRonix-eCera™ FD 19.44MHz ±50ppm -20°C ~ 70°C
FD1940002 Diodes Incorporated SaRonix-eCera™ FD 19.44MHz ±25ppm -20°C ~ 70°C

1

2

FD1940004 Diodes Incorporated SaRonix-eCera™ FD 19.44MHz ±50ppm -40°C ~ 85°C
FD2000046 Diodes Incorporated SaRonix-eCera™ FD 20MHz ±50ppm -20°C ~ 70°C
FD2000048 Diodes Incorporated SaRonix-eCera™ FD 20MHz ±50ppm -40°C ~ 85°C
FD2000049 Diodes Incorporated SaRonix-eCera™ FD 20MHz ±25ppm -20°C ~ 70°C
FD2400022 Diodes Incorporated SaRonix-eCera™ FD 24MHz ±50ppm -20°C ~ 70°C
FD2400023 Diodes Incorporated SaRonix-eCera™ FD 24MHz ±50ppm -40°C ~ 85°C
FD2400024 Diodes Incorporated SaRonix-eCera™ FD 24MHz ±25ppm -20°C ~ 70°C
FD2450018 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -20°C ~ 70°C
FD2450019 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±25ppm -20°C ~ 70°C
FD2500049 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±25ppm -20°C ~ 70°C
FD2500052 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -40°C ~ 85°C
FD2500054 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -40°C ~ 85°C
FD2500057 Diodes Incorporated SaRonix-eCera™ FD 25.0012MHz ±25ppm -20°C ~ 70°C
FD2500058 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -20°C ~ 70°C
FD2500061 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±25ppm -20°C ~ 70°C
FD2600027 Diodes Incorporated SaRonix-eCera™ FD 26MHz ±50ppm -20°C ~ 70°C
FD2600028 Diodes Incorporated SaRonix-eCera™ FD 26MHz ±25ppm -20°C ~ 70°C
FD2600030 Diodes Incorporated SaRonix-eCera™ FD 26MHz ±50ppm -40°C ~ 85°C
FD2600031 Diodes Incorporated SaRonix-eCera™ FD 26MHz ±25ppm -20°C ~ 70°C
FD2660003 Diodes Incorporated SaRonix-eCera™ FD 26.66MHz ±25ppm -20°C ~ 70°C
FD2700033 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±25ppm -20°C ~ 70°C
FD2700034 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±50ppm -40°C ~ 85°C
FD2700035 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±50ppm -20°C ~ 70°C
FD2700038 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±50ppm -20°C ~ 70°C
FD2700043 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±50ppm -20°C ~ 70°C

Product Parameters

Subfamily High Temp XO
Product Series HX
Compliance(Only Automotive supports PPAP) Standard
Freq Range (MHz) 1 to 135 (1.8V) ; 1 to 162 (2.5/3.3V)
Jitter RMS (ps) <1
Stability (PPM) 25  to  100
Package Size (mm) 5.0 x 3.2 x 1.2
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 3.3, 2.5, 1.8
Pads 4

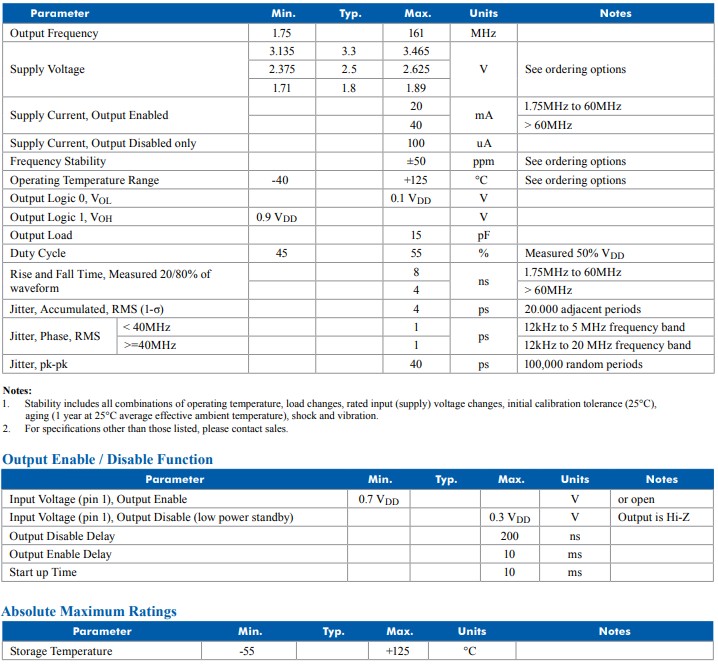

高性能CMOS晶体振荡器HX501系列,HX5013B0016.000000,5032mm晶振,ECERA贴片晶振

产品参数：

类别 高温XO
产品系列 HX
合规性（仅汽车支持PPAP）标准
频率范围 1MHz至135MHz (1.8V) ; 1MHz至162MHz (2.5/3.3V)
抖动均方根 (ps) <1
稳定性 25PPM到100PPM
包装尺寸 5.0x3.2x1.2mmSMD晶振
包装类型 陶瓷缝
输出逻辑 CMOS
电源电压 3.3V, 2.5V, 1.8V
垫 4脚
FD2860005 Diodes Incorporated SaRonix-eCera™ FD 28.6363MHz ±50ppm -20°C ~ 70°C
FD2860006 Diodes Incorporated SaRonix-eCera™ FD 28.63636MHz ±50ppm -40°C ~ 85°C
FD3000014 Diodes Incorporated SaRonix-eCera™ FD 30MHz ±25ppm -20°C ~ 70°C
FD3000015 Diodes Incorporated SaRonix-eCera™ FD 30MHz ±50ppm -40°C ~ 85°C
FD3000016 Diodes Incorporated SaRonix-eCera™ FD 30MHz ±50ppm -20°C ~ 70°C
FD3120001 Diodes Incorporated SaRonix-eCera™ FD 31.25MHz ±25ppm -20°C ~ 70°C
FD3300021 Diodes Incorporated SaRonix-eCera™ FD 33MHz ±50ppm -20°C ~ 70°C
FD3300022 Diodes Incorporated SaRonix-eCera™ FD 33MHz ±25ppm -20°C ~ 70°C
FD3300023 Diodes Incorporated SaRonix-eCera™ FD 33MHz ±50ppm -40°C ~ 85°C
FD3330016 Diodes Incorporated SaRonix-eCera™ FD 33.333MHz ±25ppm -20°C ~ 70°C
FD3330017 Diodes Incorporated SaRonix-eCera™ FD 33.333MHz ±50ppm -40°C ~ 85°C
FD3330018 Diodes Incorporated SaRonix-eCera™ FD 33.3333MHz ±50ppm -20°C ~ 70°C
FD3330019 Diodes Incorporated SaRonix-eCera™ FD 33.3333MHz ±25ppm -20°C ~ 70°C
FD3330020 Diodes Incorporated SaRonix-eCera™ FD 33.3333MHz ±50ppm -40°C ~ 85°C
FD3330022 Diodes Incorporated SaRonix-eCera™ FD 33.333MHz ±50ppm -20°C ~ 70°C
FD3330024 Diodes Incorporated SaRonix-eCera™ FD 33.333333MHz ±25ppm -20°C ~ 70°C
FD3330026 Diodes Incorporated SaRonix-eCera™ FD 33.333MHz ±50ppm -40°C ~ 85°C
FD3430001 Diodes Incorporated SaRonix-eCera™ FD 34.368MHz ±25ppm -20°C ~ 70°C
FD3530003 Diodes Incorporated SaRonix-eCera™ FD 35.328MHz ±50ppm -20°C ~ 70°C
FD3530004 Diodes Incorporated SaRonix-eCera™ FD 35.328MHz ±25ppm -20°C ~ 70°C
FD3530005 Diodes Incorporated SaRonix-eCera™ FD 35.328MHz ±50ppm -40°C ~ 85°C
FD3600009 Diodes Incorporated SaRonix-eCera™ FD 36MHz ±25ppm -20°C ~ 70°C
FD3680001 Diodes Incorporated SaRonix-eCera™ FD 36.864MHz ±50ppm -20°C ~ 70°C
FD3680002 Diodes Incorporated SaRonix-eCera™ FD 36.864MHz ±25ppm -20°C ~ 70°C
FD3680003 Diodes Incorporated SaRonix-eCera™ FD 36.864MHz ±50ppm -40°C ~ 85°C

我们的高温晶体振荡器（HX 系列）专门设计用于支持高达125℃的高温，以满足当今复杂系统的需求。该系列包括 CMOS/TTL、LVPECL、LVDS、CML和HCSL输出逻辑以及从2.0mmx1.6mm到7.0mmx5.0mm的各种尺寸。

HX501 25 ~ 100 5.0x3.2x1.2 1至135 (1.8V) ; 1至162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷缝 1.8V/2.5V/3.3V、5.0x3.2mm、高温CMOS晶体振荡器
HX502 25 ~ 100 5.0x3.2x1.2 25至162 (2.5V/3.3V) <1 LVPECL 3.32.5 6 陶瓷缝 2.5V/3.3V、5.0x3.2mm、高温LVPECL晶体振荡器
HX503 25 ~ 100 5.0x3.2x1.2 25至162 (1.8V/2.5V/3.3V) <1 LVDS 3.32.5 6 陶瓷缝 2.5V/3.3V、5.0x3.2mm、高温LVDS晶体振荡器
高性能CMOS晶体振荡器HX501系列,HX5013B0016.000000,5032mm晶振,ECERA贴片晶振

FD4000119 Diodes Incorporated SaRonix-eCera™ FD 40MHz ±50ppm -20°C ~ 70°C
FD4000120 Diodes Incorporated SaRonix-eCera™ FD 40MHz ±25ppm -20°C ~ 70°C
FD4000121 Diodes Incorporated SaRonix-eCera™ FD 40MHz ±50ppm -40°C ~ 85°C
FD4000123 Diodes Incorporated SaRonix-eCera™ FD 40MHz ±25ppm -20°C ~ 70°C
FD4100001 Diodes Incorporated SaRonix-eCera™ FD 41MHz ±50ppm -20°C ~ 70°C
FD4100002 Diodes Incorporated SaRonix-eCera™ FD 41MHz ±50ppm -20°C ~ 70°C
FD4400070 Diodes Incorporated SaRonix-eCera™ FD 41MHz ±50ppm -20°C ~ 70°C
FD4470001 Diodes Incorporated SaRonix-eCera™ FD 44.736MHz ±25ppm -20°C ~ 70°C
FD4800046 Diodes Incorporated SaRonix-eCera™ FD 48MHz ±50ppm -20°C ~ 70°C
FD4800047 Diodes Incorporated SaRonix-eCera™ FD 48MHz ±25ppm -20°C ~ 70°C
FD4800048 Diodes Incorporated SaRonix-eCera™ FD 48MHz ±50ppm -40°C ~ 85°C
FD4800050 Diodes Incorporated SaRonix-eCera™ FD 48MHz ±50ppm -20°C ~ 70°C
FD4910004 Diodes Incorporated SaRonix-eCera™ FD 49.152MHz ±25ppm -20°C ~ 70°C
FD5000032 Diodes Incorporated SaRonix-eCera™ FD 50MHz ±50ppm -20°C ~ 70°C
FD5000033 Diodes Incorporated SaRonix-eCera™ FD 50MHz ±25ppm -20°C ~ 70°C
FD5000034 Diodes Incorporated SaRonix-eCera™ FD 50MHz ±50ppm -40°C ~ 85°C
FD5000036 Diodes Incorporated SaRonix-eCera™ FD 50MHz ±50ppm -40°C ~ 85°C
FD5000037 Diodes Incorporated SaRonix-eCera™ FD 50MHz ±50ppm -20°C ~ 70°C
FD5000040 Diodes Incorporated SaRonix-eCera™ FD 50MHz ±50ppm -20°C ~ 70°C
FD5400017 Diodes Incorporated SaRonix-eCera™ FD 54MHz ±50ppm -40°C ~ 85°C
FD5670001 Diodes Incorporated SaRonix-eCera™ FD 56.75MHz ±50ppm -20°C ~ 70°C
FD6000016 Diodes Incorporated SaRonix-eCera™ FD 60MHz ±50ppm -20°C ~ 70°C
FD6250007 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm -20°C ~ 70°C
FD6250008 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±25ppm -20°C ~ 70°C
FD6250009 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm -40°C ~ 85°C

高性能CMOS晶体振荡器HX501系列,HX5013B0016.000000,5032mm晶振,ECERA贴片晶振

我们提供一流的石英晶体(Xtal)和晶体振荡器(XO)，针对您的设计要求进行了优化。
我们广泛的晶体和晶体振荡器提供：
输出频率范围从 kHz到GHz
完整的输出组合：CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的XO产品组合，包括标准 XO、VCXO、TCXO到超低抖动和高温XO
从1.0V到3.3V的多个电压范围（甚至是传统的5V）
大量SMT封装选项组合，可满足您的封装要求
