智能家居应用有源贴片晶振X1G005731060116
智能家居应用有源贴片晶振X1G005731060116，爱普生公司是一家成长型的知名企业，经过几十年快速成长，已拥有不可替代的能力，能够快速针对用户的需求提供完美的解决方案，同时这也是日本一家极其具有核心竞争力的供应商,主要向全球世界各地提供高精度的晶振产品,生产产品石英晶振，有源晶振，石英晶体振荡器等，每一款产品经过严格的生产体系制作而成，由于产品性能优越，质量有保障，赢得广大用户的支持与信赖.

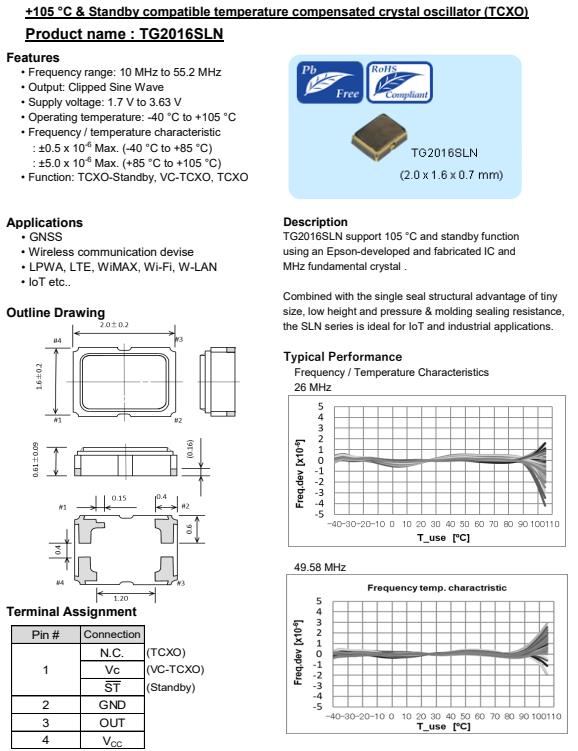

智能家居应用有源贴片晶振X1G005731060116，爱普生公司很自豪推出了用心打磨的这款TG2016SLN晶振，SPXO晶振编码X1G005731060116，频率26.000000兆赫，输出剪波正弦波，电源电压3.13 ~ 3.46 V，电源电压(一般)3.300 V，尺寸(LxWxH)2.0 x 1.6 x 0.6 mm，操作温度-40至++85°C，频率公差+/- 2.0 ppm，TG2016SLN支持105°C和待机功能，使用爱普生开发和制造的IC和无线通信装置，LPWA, LTE, WiMAX, Wi-Fi, W-LAN MHz基本晶体。结合单密封结构微小的优点，尺寸小，高度低，压力小，成型密封阻力小，SLN系列是物联网和工业应用，智能家居应用晶振的理想选择。
                                                                                                                                                                                                             Product Number
|
 Model
|
 Frequency
|
 爱普生晶振 |
 Supply Voltage
|
 F.Tol@25°C
|
 Ope Temperature
|
 Freq/Temp
|
| X1G005731010116 | TG2016SLN | 26.000000 MHz | 2.00 x 1.60 x 0.61 mm | 1.700 to 1.900 V | +/-2.0 ppm | -40 to ++85 °C | +/-0.50 ppm |
| X1G005731050116 | TG2016SLN | 26.000000 MHz | 2.00 x 1.60 x 0.61 mm | 1.700 to 1.900 V | +/-2.0 ppm | -40 to ++85 °C | +/-0.50 ppm |
| X1G005731050216 | TG2016SLN | 38.400000 MHz | 2.00 x 1.60 x 0.61 mm | 1.700 to 1.900 V | +/-2.0 ppm | -40 to ++85 °C | +/-0.50 ppm |
| X1G005731060116 | TG2016SLN | 26.000000 MHz | 2.00 x 1.60 x 0.61 mm | 3.135 to 3.465 V | +/-2.0 ppm | -40 to ++85 °C | +/-0.50 ppm |
| X1G005731060216 | TG2016SLN | 38.400000 MHz | 2.00 x 1.60 x 0.61 mm | 3.135 to 3.465 V | +/-2.0 ppm | -40 to ++85 °C | +/-0.50 ppm |
| X1G005731070116 | TG2016SLN | 26.000000 MHz | 2.00 x 1.60 x 0.61 mm | 1.700 to 1.900 V | +/-2.0 ppm | -40 to +105 °C | +/-0.50 ppm |
| X1G005731070216 | TG2016SLN | 38.400000 MHz | 2.00 x 1.60 x 0.61 mm | 1.700 to 1.900 V | +/-2.0 ppm | -40 to +105 °C | +/-0.50 ppm |
| X1G005731080116 | TG2016SLN | 26.000000 MHz | 2.00 x 1.60 x 0.61 mm | 3.135 to 3.465 V | +/-2.0 ppm | -40 to +105 °C | +/-0.50 ppm |
| X1G005731080216 | TG2016SLN | 38.400000 MHz | 2.00 x 1.60 x 0.61 mm | 3.135 to 3.465 V | +/-2.0 ppm | -40 to +105 °C | +/-0.50 ppm |
   X1G005441001225
|
 TG2016SMN
|
 40.000000 MHz
|
 2.00 x 1.60 x 0.61 mm
|
 2.800 to 3.630 V
|
 +/-1.5 ppm
|
 40 to +85 °C
|
 +/-0.50 ppm
|
| X1G005441003125 | TG2016SMN | 19.200000 MHz | 2.00 x 1.60 x 0.61 mm | 2.660 to 2.940 V | +/-1.5 ppm | 40 to +85 °C | +/-0.50 ppm |
| X1G005441003325 | TG2016SMN | 39.000000 MHz | 2.00 x 1.60 x 0.61 mm | 3.135 to 3.465 V | +/-1.5 ppm | 40 to +85 °C | +/-0.50 ppm |
| X1G005441004725 | TG2016SMN | 19.200000 MHz | 2.00 x 1.60 x 0.61 mm | 3.135 to 3.465 V | +/-1.5 ppm | 40 to +85 °C | +/-0.50 ppm |
| X1G005441006525 | TG2016SMN | 38.400000 MHz | 2.00 x 1.60 x 0.61 mm | 1.700 to 1.900 V | +/-1.5 ppm | 40 to +85 °C | +/-0.50 ppm |
| X1G005441020125 | TG2016SMN | 16.368000 MHz | 2.00 x 1.60 x 0.73 mm | 1.700 to 1.900 V | +/-1.5 ppm | -40 to +85 °C | +/-0.50 ppm |
| X1G005441020225 | TG2016SMN | 16.369000 MHz | 2.00 x 1.60 x 0.73 mm | 1.700 to 1.900 V | +/-1.5 ppm | -40 to +85 °C | +/-0.50 ppm |
| X1G005441020325 | TG2016SMN | 19.200000 MHz | 2.00 x 1.60 x 0.73 mm | 1.700 to 1.900 V | +/-1.5 ppm | -40 to +85 °C | +/-0.50 ppm |
| X1G005441020425 | TG2016SMN | 26.000000 MHz | 2.00 x 1.60 x 0.73 mm | 1.700 to 1.900 V | +/-1.5 ppm | -40 to +85 °C | +/-0.50 ppm |
| X1G005441020525 | TG2016SMN | 32.000000 MHz | 2.00 x 1.60 x 0.73 mm | 1.700 to 1.900 V | +/-1.5 ppm | -40 to +85 °C | +/-0.50 ppm |
