PCBA专用系列晶振产品SG-210SEBA有源晶振编码X1G004611A00100

来源：统一电子查看手机网址

扫一扫!

PCBA专用系列晶振产品SG-210SEBA有源晶振编码X1G004611A00100

扫一扫!

浏览：- 发布日期：2022-09-16 11:49:15【大中小】

PCBA专用系列晶振产品SG-210SEBA有源晶振编码X1G004611A00100
目前EPSON推出了应用光刻石英加工技术的SG-210等石英晶体振荡器以针对产品小型化和降低成本的要求；还推出了新一代的可编程石英晶体振荡器产品SG-8003系列,从而实现了对市场供应的快速响应.另据透露基于对未来石英晶体振荡器市场需求增长的预测,EPSON爱普生晶振在今年加大投入对SPXO 等产品的产能进行提升；同时为了增强产品市场竞争力,EPSON还利用全新的光刻石英加工技术,相对于传统的机械加工方式,大大减少了石英晶片的加工成本.

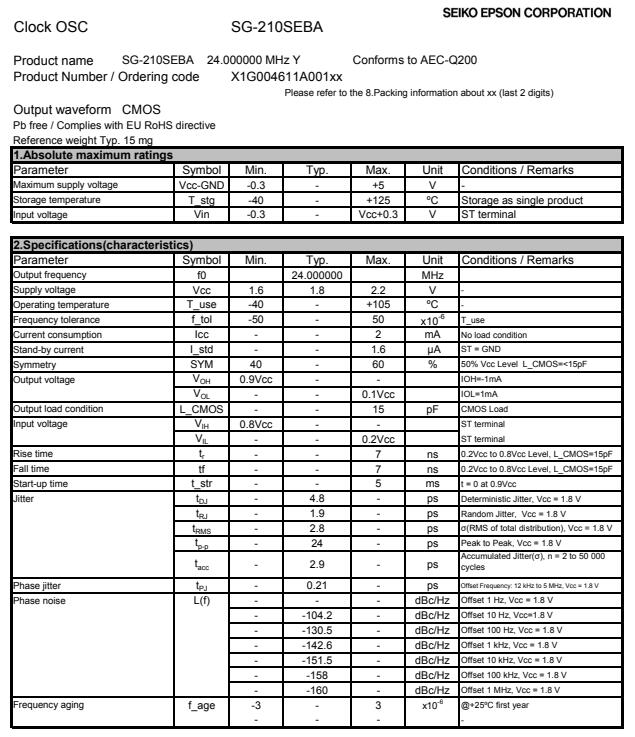

PCBA专用晶振SG-210SEBA,有源晶振编码X1G004611A00100

爱普生有源晶振编码	型号	频率	长X宽X高	输出波	电源电压	工作温度	频差
X1G004611A00100	SG-210SEBA	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 105 °C	+/-50 ppm
X1G004611A00300	SG-210SEBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 125 °C	+/-100 ppm
X1G004611A00400	SG-210SEBA	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 125 °C	+/-100 ppm
X1G004611A00500	SG-210SEBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 105 °C	+/-50 ppm
X1G004601A00500	SG-210SDBA	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.000 V	-40 to 125 °C	+/-100 ppm
X1G004601A00700	SG-210SDBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.000 V	-40 to 125 °C	+/-100 ppm
X1G004611A00100	SG-210SEBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to +125 °C	+/-100 ppm
X1G004611A00300	SG-210SEBA	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to +125 °C	+/-100 ppm
X1G004611A00400	SG-210SEBA	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to +125 °C	+/-100 ppm
X1G004611A00500	SG-210SEBA	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to +125 °C	+/-100 ppm
X1G004601A00500	SG-210SDBA	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.000 V	-40 to +125 °C	+/-100 ppm
X1G004601A00700	SG-210SDBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.000 V	-40 to +125 °C	+/-100 ppm
X1G004601A00500	SG-210SDBA	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.000 V	-40 to 125 °C	+/-100 ppm
X1G004601A00700	SG-210SDBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.000 V	-40 to 125 °C	+/-100 ppm
X1G004601A01100	SG-210SDBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.000 V	-40 to 105 °C	+/-50 ppm
X1G004611A00100	SG-210SEBA	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 105 °C	+/-50 ppm
X1G004611A00300	SG-210SEBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 125 °C	+/-100 ppm
X1G004611A00400	SG-210SEBA	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 125 °C	+/-100 ppm
X1G004611A00500	SG-210SEBA	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 105 °C	+/-50 ppm
X1G004611A01200	SG-210SEBA	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 105 °C	+/-100 ppm
X1G004611A01300	SG-210SEBA	33.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C	+/-50 ppm
X1G004611A01400	SG-210SEBA	16.666600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C	+/-50 ppm
X1G004611A01600	SG-210SEBA	14.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 105 °C	+/-50 ppm
X1G004611A01700	SG-210SEBA	37.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 105 °C	+/-50 ppm

近期EPSON推出了基频可达到3GHz的EV1409压控石英声表面波振荡器以满足光纤通信的要求.日产晶振爱普生表示目前晶振产品在技术开发上的主要趋势体现在更高的基频、更好的相位噪声和相位抖动参数等指标,以满足高通信带宽的需求,为此EPSON公司开发了石英声表面波振荡器和高基频振荡器等产品,来满足该应用要求.

PCBA专用晶振SG-210SEBA,有源晶振编码X1G004611A00100
