罗拉无线模块低抖动有源晶振编码X1G004281002000

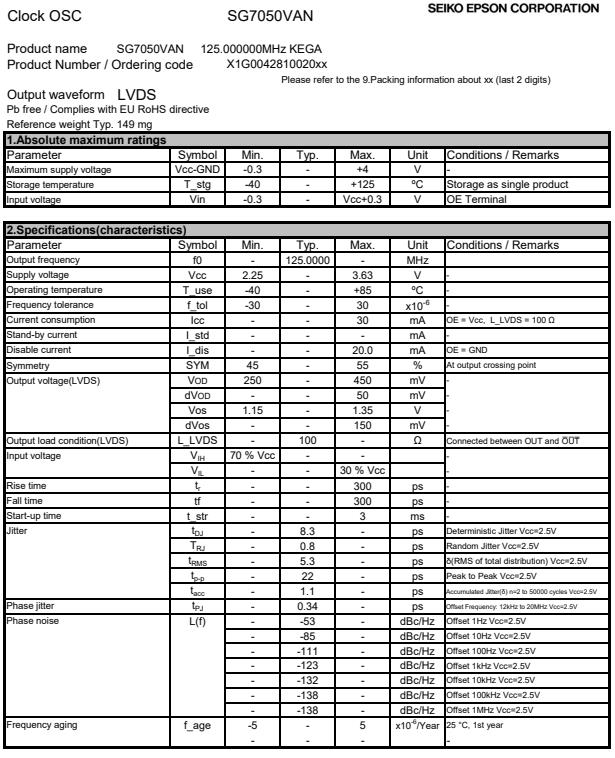

罗拉无线模块低抖动有源晶振编码X1G004281002000，在这个无比激烈的市场斗争之中，爱普生公司凭着惊人的魅力，折服了无数的用户，并以最快速占领市场，通过不断对于晶振产品的研发，如今已是名扬天下的知名企业，推出具备创新型的SG7050VAN晶振，编码X1G004281002000，频率125.000000兆赫，输出WaveLVDS，电源电压2.25 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.60 mm，操作温度-40至+85°C，频率公差±30 PPM，额外的OptionsN /OSC TypeClock OSC，这是一款7050mm的有源晶振，石英晶体振荡器，SPXO晶振，广泛用于lora无线模块，蓝牙音响，可视智能家居等。
 Product Number
|
 EPSON晶振 |
 Frequency
|
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
 Freq. Tol.
|
| X1G004281000500 | SG7050VAN | 200.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281000600 | SG7050VAN | 400.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281000800 | SG7050VAN | 212.500000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001000 | SG7050VAN | 148.500000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001100 | SG7050VAN | 75.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001200 | SG7050VAN | 150.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001300 | SG7050VAN | 155.520000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001400 | SG7050VAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001500 | SG7050VAN | 312.500000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001600 | SG7050VAN | 312.515625 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001700 | SG7050VAN | 161.132800 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281001900 | SG7050VAN | 700.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004281002000 | SG7050VAN | 125.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004281002100 | SG7050VAN | 125.006250 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004281002300 | SG7050VAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004281002400 | SG7050VAN | 200.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004281002700 | SG7050VAN | 212.500000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004281002800 | SG7050VAN | 74.250000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004281002900 | SG7050VAN | 148.500000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004281003100 | SG7050VAN | 150.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
罗拉无线模块低抖动有源晶振编码X1G004281002000，晶体振荡器就是指用石英材料做成的石英晶体振荡器，俗称晶振，起产生频率的作用，具有稳定、抗干扰性能良好的特点、广泛应用于各种电子产品中。晶振是电路中常用的时钟元件，在数字电路中不可或缺。
