低功耗蓝牙智能灯控制模块LVDS晶振Q3805CA10024700
低功耗蓝牙智能灯控制模块LVDS晶振Q3805CA10024700,爱普生公司从最初只有几个人的小作坊到如今已是闻名于天下的企业，一路成长中，凭着自身的顽强生命力，克服一路所遇到的困难，并且在困难中永葆初心，只为了能够将最优质的晶振产品供应到市场世界各地，主要向市场提供高性能的有源晶振，石英晶体振荡器，贴片晶振，石英晶振等产品，而优越的性能，低成本成了爱普生公司的优势之一。

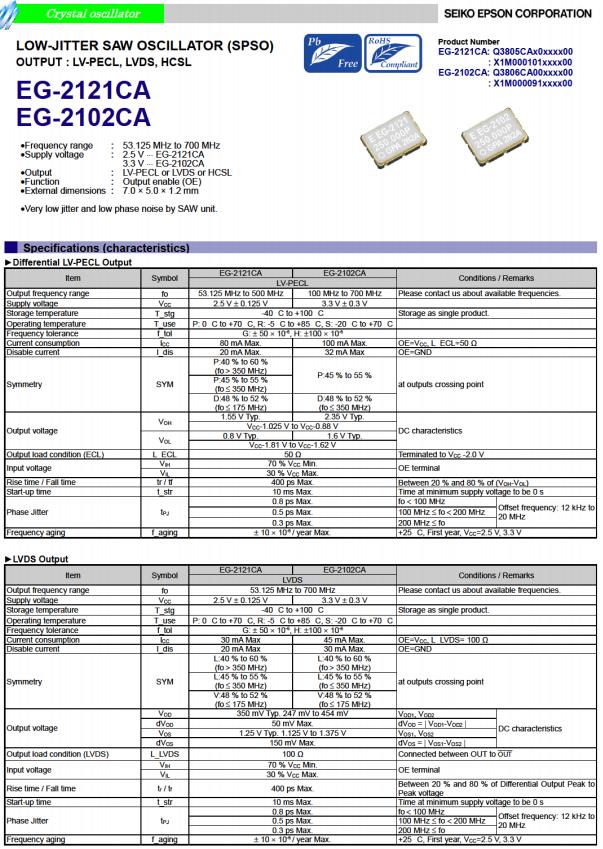

低功耗蓝牙智能灯控制模块LVDS晶振Q3805CA10024700,日本爱普生晶振利用自身的优势推出了新一代的石英晶体振荡器产品EG-2121CA系列,编码Q3805CA10024700，频率160.000000兆赫，输出WaveLVDS，电源电压2.38 ~ 2.62 V，尺寸(LxWxH)7.00 x 5.00 x 1.20 mm，工作温度0至+70°C，频率公差±100ppm，这是一款7050mm的有源晶振，OSC晶振广泛用于高精密的应用程序，其中包含蓝牙智能灯，医疗设备，航空电子等领域，从而实现对市场供应的快速响应.
                                                                         Product Number
|
  Model
|
Frequency |
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
| Q3805CA10022800 | EG-2121CA | 156.257810 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10023000 | EG-2121CA | 150.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| Q3805CA10023100 | EG-2121CA | 212.500000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| Q3805CA10023200 | EG-2121CA | 144.000000 MHz | 7.00 x 5.00 x 1.20 mm |
LVDS晶振 |
2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10023300 | EG-2121CA | 148.500000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10023400 | EG-2121CA | 105.600000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10023500 | EG-2121CA | 500.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| Q3805CA10023600 | EG-2121CA | 135.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10023700 | EG-2121CA | 300.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10023800 | EG-2121CA | 155.520000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10023900 | EG-2121CA | 166.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| Q3805CA10024000 | EG-2121CA | 180.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10024300 | EG-2121CA | 106.250000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10024500 | EG-2121CA | 266.666000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10024600 | EG-2121CA | 333.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10024700 | EG-2121CA | 160.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10024800 | EG-2121CA | 133.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10024900 | EG-2121CA | 54.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10025000 | EG-2121CA | 148.500000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10025100 | EG-2121CA | 644.531300 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | -20 to 70 °C |
爱普生晶振集团所生产的压电石英晶体、石英晶体振荡器,温补晶体振荡器（TCXO）、恒温晶体振荡器（OCXO）完全符合ISO14001环境管理体系标准的要求,体现了一个适合、三个承诺和一个框架：
建造美丽家园——适合于我公司的生产活动、产品以及服务过程的性质.规模与环境影响；持续改进——持续改进环境绩效和环境管理体系的承诺；
减少污染,节能降耗——污染预防的承诺；
