爱普生具备优越性能的石英晶体谐振器原厂编码系列Q22FA1280002400

来源：统一电子查看手机网址

扫一扫!

扫一扫!

浏览：- 发布日期：2022-08-24 17:58:25【大中小】

伴随着电子产品便携式和小型化发展，在有限的空间内实现更多功能，晶振等元器件也跟着实现小型化。对于贴片晶振而言，在短短几年时间内，从最初的封装尺寸8045mm，逐渐过度到7050mm、6035mm、5032mm、3.2*2.5mm、 2.5*2.0mm、 2.0*1.6mm，每一次小型化发展，都带来从更加自动化的生产工艺，进而推动整个产业链的革新和升级.爱普生具备优越性能的石英晶体谐振器原厂编码系列Q22FA1280002400

Product Number	LxWxH	Model	Frequency	CL Value	Freq.tol. @+25°C
Q22FA1280000200	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	12 pF	+/-50 ppm
Q22FA1280000700	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	10 pF	+/-15 ppm
Q22FA1280000800	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	10 pF	+/-30 ppm
Q22FA1280001000	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	10 pF	+/-10 ppm
Q22FA1280001100	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	10 pF	+/-10 ppm
Q22FA1280001300	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	16 pF	+/-30 ppm
Q22FA1280001400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	16 pF	+/-30 ppm
Q22FA1280001800	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-10 ppm
Q22FA1280002000	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	9 pF	+/-10 ppm
Q22FA1280002100	2 x 1.6 x 0.5mm	FA-128晶振	27.120000 MHz	10 pF	+/-10 ppm
Q22FA1280002200	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-10 ppm
Q22FA1280002400	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	+/-10 ppm
Q22FA1280002500	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm
Q22FA1280002600	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	8 pF	+/-10 ppm
Q22FA1280003000	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-30 ppm
Q22FA1280003100	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	18 pF	+/-30 ppm
Q22FA1280003400	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	8 pF	+/-15 ppm
Q22FA1280003500	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-30 ppm
Q22FA1280003700	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-50 ppm
Q22FA1280003800	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-50 ppm

爱普生公司在晶体行业已有几十年的发展，通过不断研发生产拓展产品，如今的产品齐全，精度，品质均属一流。爱普生晶振以32.768K音叉晶体称霸晶振行业，主要消费在手机，PCB，等电子产品。随着当下市场的需求，爱普生公司又为市场提供原子钟的精准振荡器。由于爱普生公司秉持着精益求精的精神,在音叉振子和振荡器还远远达不到爱普生本身的要求。他们要求的是在元器件占领NO1。因此除了KHZ,MHZ的研究发展，另外还发明GHZ技术，使工艺技术达到人无完人，史前无例，实现以基波方式产生2.5GHz为止高频的表面声波（SAW）元器件。

Product Number	LxWxH	Model	Frequency	CL Value	Freq.tol. @+25°C
Q22FA1280004300	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm
Q22FA1280004400	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	16 pF	+/-15 ppm
Q22FA1280004500	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8.5 pF	+/-10 ppm
Q22FA1280004700	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	+/-10 ppm
Q22FA1280005300	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-10 ppm
Q22FA1280005400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm
Q22FA1280006100	2 x 1.6 x 0.5mm	FA-128	44.000000 MHz	12 pF	+/-10 ppm
Q22FA1280006200	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	+/-30 ppm
Q22FA1280006400	2 x 1.6 x 0.5mm	FA-128	37.400000 MHz	18 pF	+/-10 ppm
Q22FA1280006700	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-30 ppm
Q22FA1280007000	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	7 pF	+/-10 ppm
Q22FA1280008500	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-30 ppm
Q22FA1280008900	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	+/-30 ppm
Q22FA1280009000	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-10 ppm
Q22FA1280009100	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	7 pF	+/-50 ppm
Q22FA1280009200	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-10 ppm
Q22FA1280009400	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	8 pF	+/-10 ppm
Q22FA1280009900	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	8 pF	+/-10 ppm
Q22FA1280010000	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8 pF	+/-10 ppm
Q22FA1280010100	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	10 pF	+/-10 ppm

随着爱普生的发展历程不断增长，又把爱普生拓优科梦把半导体（IC）称之为“产业之米”，并认为石英晶体元器件更是离不开的“产业之盐”。将进一步致力于小型、高稳定、高精度晶体元器件的开发，为现有的应用程序以及生活新蓝图开拓广阔前景。爱普生具备优越性能的石英晶体谐振器原厂编码系列Q22FA1280002400

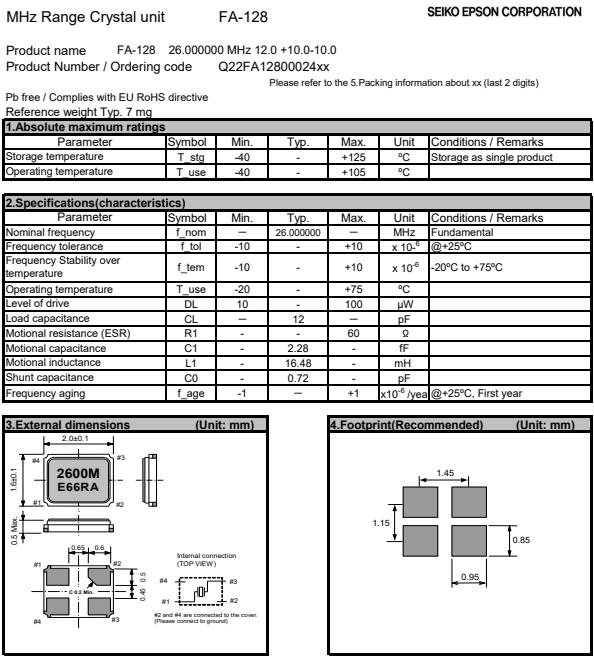

爱普生凭着自身独特的创造力,开发出FA-128晶振,编码Q22FA1280002400，这是一款广泛使用于高精密应用的石英晶体谐振器,无源晶振,Frequency26.000000兆赫，尺寸(长×宽×高)2 × 1.6 × 0.5 mm，客户负载电容12pf，频率公差+ / -10 ppm，Fo / temp。特征公差+ / -10 ppm，温度范围-20到+75°C
