KN系列是一款小型化和高精度的XO时钟振荡器KN327003,ECERA有源晶振
KN系列是一款小型化和高精度的XO时钟振荡器KN327003,ECERA有源晶振，
Our oscillators are low-jitter, tight-stability oscillator modules that combine proven quartz crystal resonator technology with leading-edge clock IC technology.
百利通亚陶公司为晶体行业作出巨大的贡献价值,同时在创新型产品线上有属于自身独特的见解,一直走在在技术的最前沿,引领着业界的发展.我们的振荡器是低抖动、高度稳定的振荡器模块，将成熟的石英晶体谐振器技术与领先的时钟 IC 技术相结合。
Available with CMOS/TTL, LVPECL, or LVDS output logic, our voltage control oscillators achieve very tight overall accuracy of ±20 ppm for a variety of applications, including WiFi, WiMax, PON, and telecommunications standards such as SONET/SDH. Additionally, some oscillator products feature a voltage control function that enables in-circuit adjustment of the output frequency for use in data signal acquisition, clock retiming and jitter attenuation, or frequency synthesis.
| LDGPON155 | Diodes晶振 | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| LDF550001 | Diodes晶振 | SaRonix-eCera™ LD | 155.52MHz | ±25ppm | -20°C ~ 70°C |
| PDF620004 | Diodes晶振 | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| S1613B-27.0000 | Diodes晶振 | SaRonix-eCera™ FN | 27MHz | ±50ppm | -10°C ~ 70°C |
| KM3270002 | Diodes晶振 | SaRonix-eCera™ KM | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KM3270003 | Diodes晶振 | SaRonix-eCera™ KM | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| PXA000010 | Diodes晶振 | SaRonix-eCera™ PX | 100MHz | ±50ppm | -20°C ~ 70°C |
| PXA000010 | Diodes晶振 | SaRonix-eCera™ PX | 100MHz | ±50ppm | -20°C ~ 70°C |
| NX5031E0125.000000 | Diodes晶振 | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| FD0100003 | Diodes晶振 | SaRonix-eCera™ FD | 1MHz | ±50ppm | -20°C ~ 70°C |
| FD0180008 | Diodes晶振 | SaRonix-eCera™ FD | 1.8432MHz | ±50ppm | -20°C ~ 70°C |
| FD0180009 | Diodes晶振 | SaRonix-eCera™ FD | 1.8432MHz | ±25ppm | -20°C ~ 70°C |
| FD0180010 | Diodes晶振 | SaRonix-eCera™ FD | 1.8432MHz | ±50ppm | -40°C ~ 85°C |
| FD0200013 | Diodes晶振 | SaRonix-eCera™ FD | 2.048MHz | ±25ppm | -20°C ~ 70°C |
| FD0200014 | Diodes晶振 | SaRonix-eCera™ FD | 2.048MHz | ±50ppm | -40°C ~ 85°C |
| FD0200015 | Diodes晶振 | SaRonix-eCera™ FD | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FD0350006 | Diodes晶振 | SaRonix-eCera™ FD | 3.579545MHz | ±50ppm | -20°C ~ 70°C |
| FD0360017 | Diodes晶振 | SaRonix-eCera™ FD | 3.6864MHz | ±50ppm | -20°C ~ 70°C |
| FD0360018 | Diodes晶振 | SaRonix-eCera™ FD | 3.6864MHz | ±25ppm | -20°C ~ 70°C |
| FD0360019 | Diodes晶振 | SaRonix-eCera™ FD | 3.6864MHz | ±50ppm | -40°C ~ 85°C |
| FD0400021 | Diodes晶振 | SaRonix-eCera™ FD | 4MHz | ±25ppm | -20°C ~ 70°C |
| FD0500003 | Diodes晶振 | SaRonix-eCera™ FD | 5MHz | ±50ppm | -20°C ~ 70°C |
| FD0600006 | Diodes晶振 | SaRonix-eCera™ FD | 6MHz | ±25ppm | -20°C ~ 70°C |
| FD0610002 | Diodes晶振 | SaRonix-eCera™ FD | 6.144MHz | ±20ppm | -20°C ~ 70°C |
| FD0730013 | Diodes晶振 | SaRonix-eCera™ FD | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
| FD0800013 | Diodes晶振 | SaRonix-eCera™ FD | 8MHz | ±50ppm | -40°C ~ 85°C |
| FD0810003 | Diodes晶振 | SaRonix-eCera™ FD | 8.192MHz | ±50ppm | -20°C ~ 70°C |
| FD0810004 | Diodes晶振 | SaRonix-eCera™ FD | 8.192MHz | ±25ppm | -20°C ~ 70°C |
| FD0810005 | Diodes晶振 | SaRonix-eCera™ FD | 8.192MHz | ±50ppm | -40°C ~ 85°C |
| FD0820001 | Diodes晶振 | SaRonix-eCera™ FD | 8.25MHz | ±50ppm | -20°C ~ 70°C |
| FD1000015 | Diodes晶振 | SaRonix-eCera™ FD | 10MHz | ±50ppm | -20°C ~ 70°C |
| FD1000016 | Diodes晶振 | SaRonix-eCera™ FD | 10MHz | ±25ppm | -20°C ~ 70°C |
| FD1000017 | Diodes晶振 | SaRonix-eCera™ FD | 10MHz | ±50ppm | -40°C ~ 85°C |
| FD1100008 | Diodes晶振 | SaRonix-eCera™ FD | 11.0592MHz | ±50ppm | -40°C ~ 85°C |
| FD1120009 | Diodes晶振 | SaRonix-eCera™ FD | 11.2896MHz | ±50ppm | -20°C ~ 70°C |
| FD1200028 | Diodes晶振 | SaRonix-eCera™ FD | 12MHz | ±50ppm | -20°C ~ 70°C |
| FD1200029 | Diodes晶振 | SaRonix-eCera™ FD | 12MHz | ±25ppm | -20°C ~ 70°C |
| FD1200030 | Diodes晶振 | SaRonix-eCera™ FD | 12MHz | ±50ppm | -40°C ~ 85°C |
| FD1220014 | Diodes晶振 | SaRonix-eCera™ FD | 12.288MHz | ±50ppm | -20°C ~ 70°C |

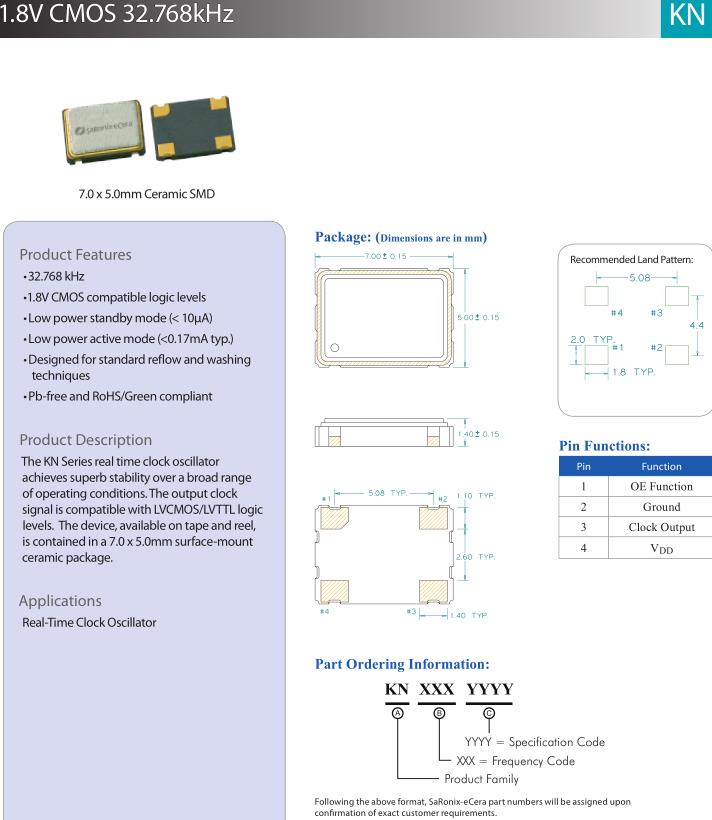

产品特性
32.768千赫
1.8V CMOS兼容逻辑电平
低功耗待机模式(< 10 μ A)
低功率有源模式(<0.17mA典型值)
用于标准回流和洗涤技术
无铅和RoHS/绿色环保
| FD1220015 | Diodes晶振 | SaRonix-eCera™ FD | 12.288MHz | ±50ppm | -40°C ~ 85°C |
| FD1220016 | Diodes晶振 | SaRonix-eCera™ FD | 12.288MHz | ±25ppm | -20°C ~ 70°C |
| FD1350007 | Diodes晶振 | SaRonix-eCera™ FD | 13.5MHz | ±50ppm | -20°C ~ 70°C |
| FD1430016 | Diodes晶振 | SaRonix-eCera™ FD | 14.3181MHz | ±50ppm | -20°C ~ 70°C |
| FD1430018 | Diodes晶振 | SaRonix-eCera™ FD | 14.3181MHz | ±50ppm | -40°C ~ 85°C |
| FD1470015 | Diodes晶振 | SaRonix-eCera™ FD | 14.7456MHz | ±50ppm | -20°C ~ 70°C |
| FD1470017 | Diodes晶振 | SaRonix-eCera™ FD | 14.7456MHz | ±50ppm | -40°C ~ 85°C |
| FD1600015 | Diodes晶振 | SaRonix-eCera™ FD | 16MHz | ±50ppm | -20°C ~ 70°C |
| FD1600016 | Diodes晶振 | SaRonix-eCera™ FD | 16MHz | ±25ppm | -20°C ~ 70°C |
| FD1600017 | Diodes晶振 | SaRonix-eCera™ FD | 16MHz | ±50ppm | -40°C ~ 85°C |
| FD1630009 | Diodes晶振 | SaRonix-eCera™ FD | 16.384MHz | ±50ppm | -20°C ~ 70°C |
| FD1630010 | Diodes晶振 | SaRonix-eCera™ FD | 16.384MHz | ±25ppm | -20°C ~ 70°C |
| FD1630011 | Diodes晶振 | SaRonix-eCera™ FD | 16.384MHz | ±50ppm | -40°C ~ 85°C |
| FD1630012 | Diodes晶振 | SaRonix-eCera™ FD | 16.384MHz | ±50ppm | -40°C ~ 85°C |
| FD1650001 | Diodes晶振 | SaRonix-eCera™ FD | 16.5MHz | ±50ppm | -20°C ~ 70°C |
| FD1800003 | Diodes晶振 | SaRonix-eCera™ FD | 18MHz | ±50ppm | -40°C ~ 85°C |
| FD1840014 | Diodes晶振 | SaRonix-eCera™ FD | 18.432MHz | ±50ppm | -20°C ~ 70°C |
| FD1940001 | Diodes晶振 | SaRonix-eCera™ FD | 19.44MHz | ±50ppm | -20°C ~ 70°C |
| FD1940002 | Diodes晶振 | SaRonix-eCera™ FD | 19.44MHz | ±25ppm | -20°C ~ 70°C |
| FD1940004 | Diodes晶振 | SaRonix-eCera™ FD | 19.44MHz | ±50ppm | -40°C ~ 85°C |
| FD2000046 | Diodes晶振 | SaRonix-eCera™ FD | 20MHz | ±50ppm | -20°C ~ 70°C |
| FD2000048 | Diodes晶振 | SaRonix-eCera™ FD | 20MHz | ±50ppm | -40°C ~ 85°C |
KN系列实时时钟晶体振荡器在广泛的范围内实现卓越的稳定性的操作条件。输出时钟信号兼容LVCMOS/LVTTL逻辑的水平。该设备可在磁带和卷轴上使用，包含在7.0 x 5.0mm表面安装陶瓷包装。
应用程序
实时时钟振荡器，KN系列是一款小型化和高精度的XO时钟振荡器KN327003,ECERA有源晶振
