HCMOS输出的温度补偿振荡器ECS-327TXO-2012-33-TR常常用于RTC无线应用
HCMOS输出的温度补偿振荡器ECS-327TXO-2012-33-TR常常用于RTC无线应用，As one of the world’s leading manufacturers of crystal oscillators, SMD crystals, power inductors and other frequency control solutions, ECS Inc. is always on the forefront of technological advancement so that our customers have the best components for their applications.
作为世界领先的石英晶体振荡器，SMD晶体，功率电感器和其他频率控制解决方案的制造商之一，ECS公司始终处于技术进步的最前沿，以便我们的客户拥有适合其应用的最佳组件。
| Manufacturer Part Number原厂代码 | Manufacturer品牌 | Series型号 | Frequency 频率 | Operating Temperature 工作温度 |
| ECS-3225S33-100-FN-TR | ECS晶振 | ECS-3225S | 10MHz | -40°C ~ 85°C |
| ECS-3225S33-100-FN-TR | ECS晶振 | ECS-3225S | 10MHz | -40°C ~ 85°C |
| ECS-3225S33-100-FN-TR | ECS晶振 | ECS-3225S | 10MHz | -40°C ~ 85°C |
| ECS-3225S33-240-FN-TR | ECS晶振 | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S33-240-FN-TR | ECS晶振 | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S33-240-FN-TR | ECS有源晶振 | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-500-FN-TR | ECS晶振 | ECS-3225S | 50MHz | -40°C ~ 85°C |
| ECS-3225S25-500-FN-TR | ECS晶振 | ECS-3225S | 50MHz | -40°C ~ 85°C |
| ECS-3225S25-500-FN-TR | ECS晶振 | ECS-3225S | 50MHz | -40°C ~ 85°C |
| ECS-2520S33-100-FN-TR | ECS晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S33-100-FN-TR | ECS晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S33-100-FN-TR | ECS晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S33-400-FN-TR | ECS晶振 | ECS-2520S | 40MHz | -40°C ~ 85°C |
| ECS-2520S33-400-FN-TR | ECS晶振 | ECS-2520S | 40MHz | -40°C ~ 85°C |
| ECS-2520S33-400-FN-TR | ECS晶振 | ECS-2520S | 40MHz | -40°C ~ 85°C |
| ECS-2520S18-200-FN-TR | ECS晶振 | ECS-2520S | 20MHz | -40°C ~ 85°C |
| ECS-2520S18-200-FN-TR | ECS晶振 | ECS-2520S | 20MHz | -40°C ~ 85°C |
| ECS-2520S18-200-FN-TR | ECS晶振 | ECS-2520S | 20MHz | -40°C ~ 85°C |
| ECS-2520S33-500-FN-TR | ECS晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S33-500-FN-TR | ECS晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S33-500-FN-TR | ECS晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S33-320-FN-TR | ECS晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S33-320-FN-TR | ECS晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S33-320-FN-TR | ECS晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S25-250-FN-TR | ECS晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |

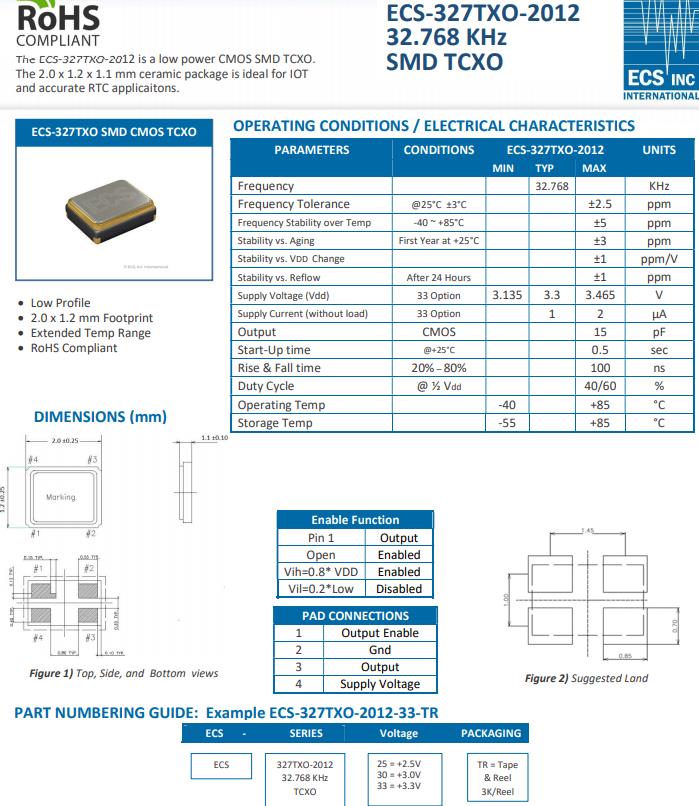

ECS Inc. International’s new series of ECS-327TXO-2012 HCMOS temperature compensated crystal oscillators are available in a 2.0 mm x 1.2 mm x 1.1 mm 4-pad ceramic package. The standard version of this TCXO offers a frequency stability of ±5ppm between the standard industrial temperature range of -40ºC to +85ºC. The standard ECS-327TXO-2012 functions off a 3.3V supply voltage, with 2.5V and 3.0V options available. They are offered in standard 1,000- and 3,000-piece reels. Ideal for IoT, RTC wireless, storage and industrial applications where size is critical.
HCMOS输出的温度补偿振荡器ECS-327TXO-2012-33-TR常常用于RTC无线应用，ECS国际公司的新系列ECS-327TXO-2012 HCMOS温度补偿振荡器采用2.0 mm x 1.2 mm x 1.1 mm 4垫陶瓷封装。该TCXO的标准版本在-40ºC至+85ºC的标准工业温度范围内提供±5ppm的频率稳定性。标准ECS-327TXO-2012功能断开3.3V电源电压，2.5V和3.0V选项可用。它们提供标准的1000片和3000片卷轴。非常适合物联网、RTC无线、存储和工业应用，其中尺寸是至关重要的。
ECS晶振公司推出这款ECS-327TXO-2012-33-TR是一款低功耗CMOS SMD TCXO。2.0 x 1.2 x 1.1毫米陶瓷封装是物联网的理想选择准确的RTC应用。
特点：2.0 mm x 1.2 mm x 1.1 mm 4个衬垫，32.768 kHz频率，稳定性±5ppm @ -40ºC ~ +85ºC，电流消耗:1.0µA，标准电源电压3.3V, 2.5V和3.0V可供选择，HCMOS输出，符合RoHS和REACH标准.
应用范围：物联网，清债信托公司，无线设备，智能电表，存储设计，导航，医疗，工业，通用微处理器.
